Automated Sealer – SealBio-1
Call 042-300 91 30 or email info@labteamet.com

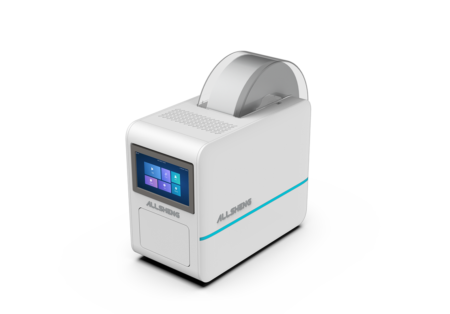

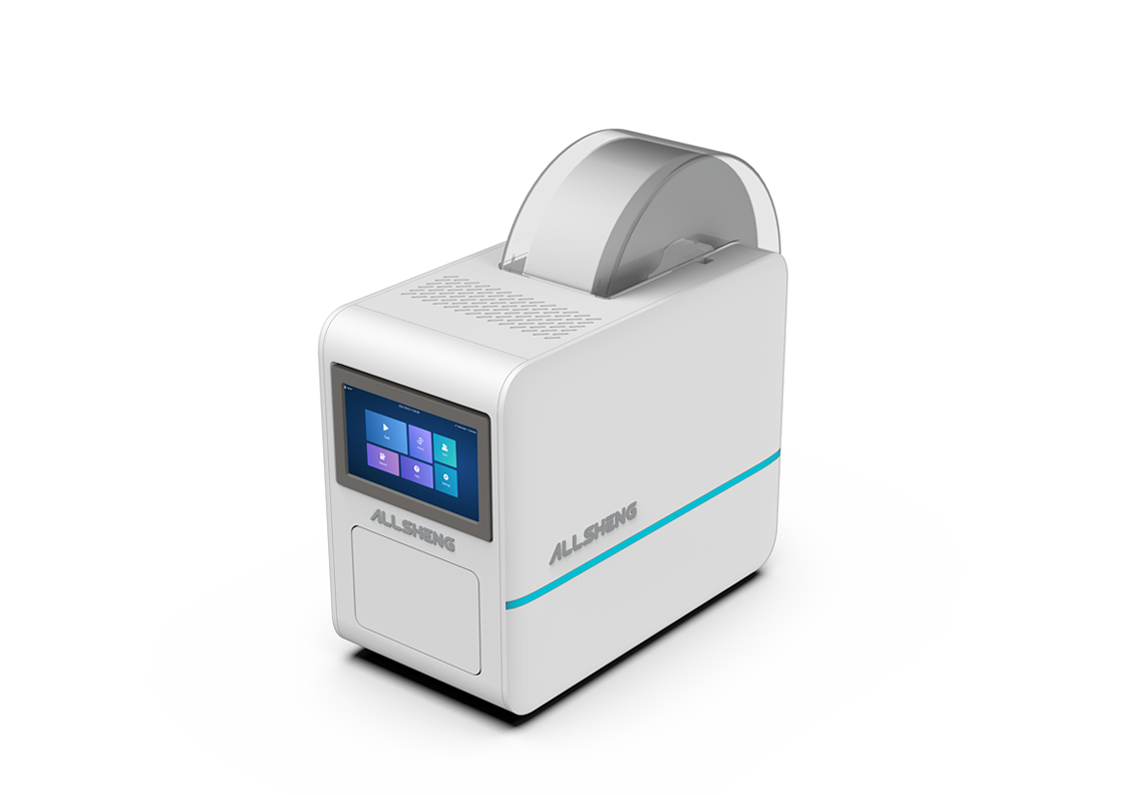

SealBio-1 automated sealer is a device for rapid and continuous sealing of microplates. It can be adapted to ANSI, SBS standard 12-well, 24-well, 48-well, 96-well and 384-well plates with height range of 3~62 mm, including all kinds of PCR plates, ELISA plates, deep-well plates, cell culture plates, etc. It supports the use of 78 mm puncturable roll film, aluminum foil roll film and strong heat sealing roll film.
Suitable for pre-filled of biochemical reagents, sealing film before PCR assays, long-term storage of samples, and other experimental applications that require sealing of reagents.
▪RT.~200 °C free setting, to meet the needs of different film sealing applications
Built-in independent air source, no need to connect other equipment
▪Automatic preloading of film, continuous operation
▪Sealing cycle time<20 sec
▪Touch screen operation, graphical interface is easier to use
Standard roll film protection cover to avoid film surface contamination
Program storage function to save different types of film parameters for quick recall
| Product name | SealBio-1 automated sealer |
| Supported plates | ANSI / SBS standard plate, height range 3~62 mm |
| Support roll film-film type | Puncturable film / aluminum foil film / strong heat sealing film |
| Support roll film-film width | 78 mm |
| Support roll film-loading method | Automatic preloading of roll film |
| Film sealing temperature-temperature range | RT.~200 °C |
| Film sealing temperature-temperature control accuracy | ±1 °C |
| Film sealing temperature-accommodative amplitude | 1 °C |
| Pre-heating time | 5 min |
| Cycle time | <20 seconds / time |
| Adjustable film sealing time-time range | 0.5~9.9 seconds |
| Adjustable film sealing time-accommodative amplitude | 0.1 seconds |
| Air source method | Built-in air source |
| Port | 1×USB-B port and 1×Ethernet port |
| Power supply | AC 100~240 V, 50 / 60 Hz |
| Maximum power | 300 W |
| Software operation | 7-inch touch screen software (resolution 1024*600) / edit sealing scheme / prestored sealing scheme |
| Safety | Standby function (low power mode) / detection of plate / detection of roll film |
