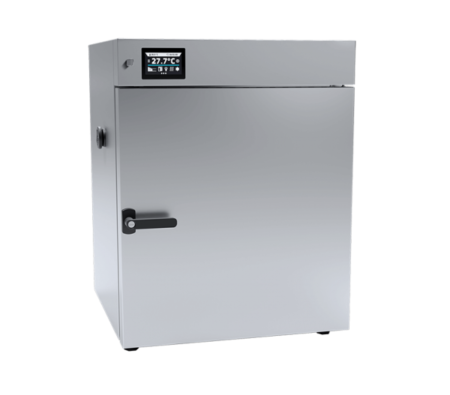

SRW115 Smart – Sterilizer / Sterilizer cabinet with fan, 112 liters

Sterilizer / Sterilizer cabinet with fan, 112 liters

Pol Eko Logo

Artikelnr: PE-SRW-115-SMART Kategori:

Questions on SRW115 Smart – Sterilizer / Sterilizer cabinet with fan, 112 liters?

Call 042-300 91 30 or email info@labteamet.com

Description

SRW115 Smart Sterilizer / Sterilizer cabinet Volume 112 liters

  • Standard equipment SRW 115

    • temperature range + 5°C above ambient temperature … + 250°C
    • chamber capacity 112 liters
    • working capacity 112 liters
    • quality control protocol at +105°C
    • over temperature protection 2.0 class according to DIN 12880
    • open by alarm
    • air-flap Ø40 mm
    • LAN port and USB port
    • access port to enter an external sensor (Ø30 mm) on the left side of the unit
    • by lock
    • Stainless steel wire shelf (INOX)
    • external full doors
    • sterilization programs (including mask sterilization program)
    • automatic door lock during the sterilization program
    • air-flap closed automatically after starting the sterilization program
    • possibility to remember 3 factory and 5 any user programs
    • available controllers: Smart

Technical data

TECHNICAL DATA
air convection forced
chamber capacity [l] 112
working capacity [l] 112
controller microprocessor PID
display 4,3″ full colour touch screen
TEMPERATURE
temperature range [°C] 5°C above ambient temperature … +250°C
temperature resolution every … [°C] 0,1
temperature fluctuation at 105°C [+/-°C]* 0,2
temperature variation at 105°C [+/-°C]* 2,0
temperature protection class 2.0 to DIN 12880 / class 3.1 (option)
CHAMBER
door type solid / door with viewing window (option)
interior
Smart acid-proof stainless steel to DIN 1.4301
IG Smart acid-proof stainless steel to DIN 1.4301
housing
Smart powder coated sheet
IG Smart stainless steel linen finish
overall dims [mm] /1/
width A 660
height B 850
depth C 710
internal dims [mm]
width D 460
height E 540
depth F 450
smart-dimms-SR
shelves (standard | max) 2 | 7
max shelf workload [kg] /2/ 25
– reinforced shelf version (PW) [kg] /3/ 50
max unit workload [kg] 60
weight [kg] 65
ELECTRICAL PARAMETERS
voltage** 230V 50-60Hz
nominal power [W] 2500
warranty 24 months
manufacturer POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
