Name: Grant Refrigerated Circulation Thermostats - R5 Series - From -47°C up to 100°C - LabTeamet
SKU: GR-OPTIMA KYLCIRKULATORER-1

Description

Grant refrigerated circulation thermostats – R5 series

The Grant R5 refrigerated bath and circulator range provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -47 to 100°C. A choice of 4 heating circulators combined with a powerful R5 refrigeration unit offers a cost-effective and efficient solution for low temperature applications.

The Grant R5 range, which can be combined with any of our T100, TC120, TX150 or TXF200 heating circulators, offer a number of features:

Stability of up to ±0.1°C
Up to 3 years warranty
No spill valved front drain
3 preset programs
Optimal 12L tank for rapid cool-down
Environmentally friendly refrigerant
Robust construction
1.1kW
Built in Britain
Range of accessory hosing, connectors, software, additional pumps and temperature probes available

Note: The refrigeration unit can be switched off independently of the heating circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

Applications

University research/teaching – temperature control of external equipment including: spectrophotometers & refractometers. Circulation of temperature control fluid to jacketed vessels, cooling crystallization vessels
Industrial laboratories – temperature probe calibration, product testing, product QC, temperature control of external equipment.

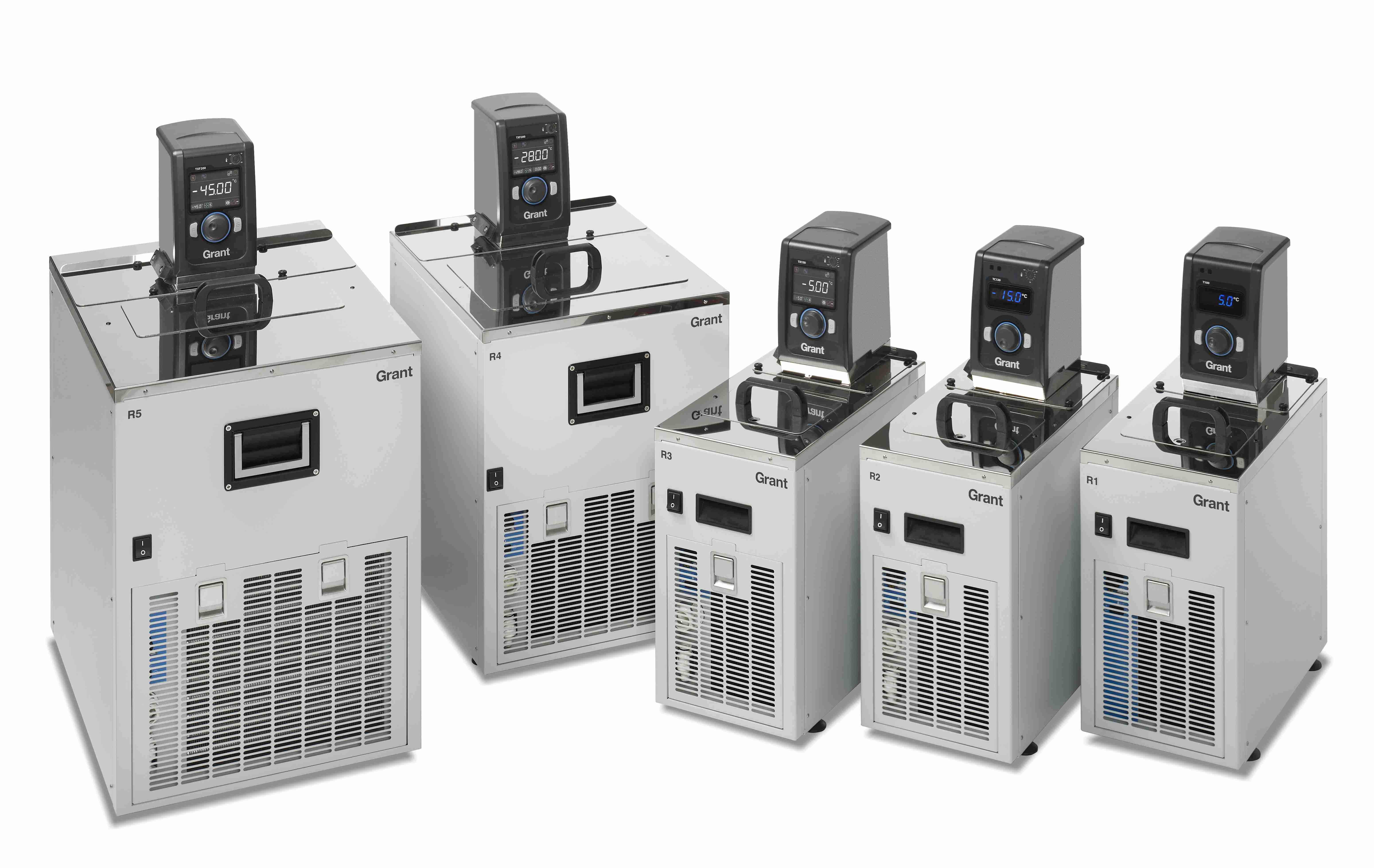

Grant refrigerated circulators – R5-series

Specifications

Dimensions (h x d x w)	610 x 590 x 414mm
Capacity	12L
Temperature range (T100)	0-100ºC
Temperature range (TC120)	-20 to 100ºC
Temperature range (TX150)	-47 to 100ºC
Temperature range (TXF200)	-47 to 100ºC
Refrigerant	R404a
Working Area (d x w)	260 x 115mm
Min/Max liquid level	125/180mm
Cooling power (typical) @20ºC	1100W
Cooling power (typical) @0ºC	1050W
Cooling power (typical) @-10ºC	800W
Cooling power (typical) @-20ºC	580W
Cooling power (typical) @-30ºC	370W
Cooling power (typical) @-40ºC	130W
Cooling power (typical) @-47ºC	25W
Electrical power (max) 120V	–
Electrical power (max) 230V	1400W (50Hz)
Relay control*	•
Weight	48.3kg

	Grant Instruments – Cirkulationsbad med kyla och värme – katalogsidor
	Grant Instruments – Produktkatalog

Videoklippet visar Grants cirkulationstermostater med kyla
