Name: SNOL 8/1600 LSF01 LZM21 - Laboratory furnace 1100°C - LabTeamet
SKU: SN-8-1600-LSF01-LZM21

Description

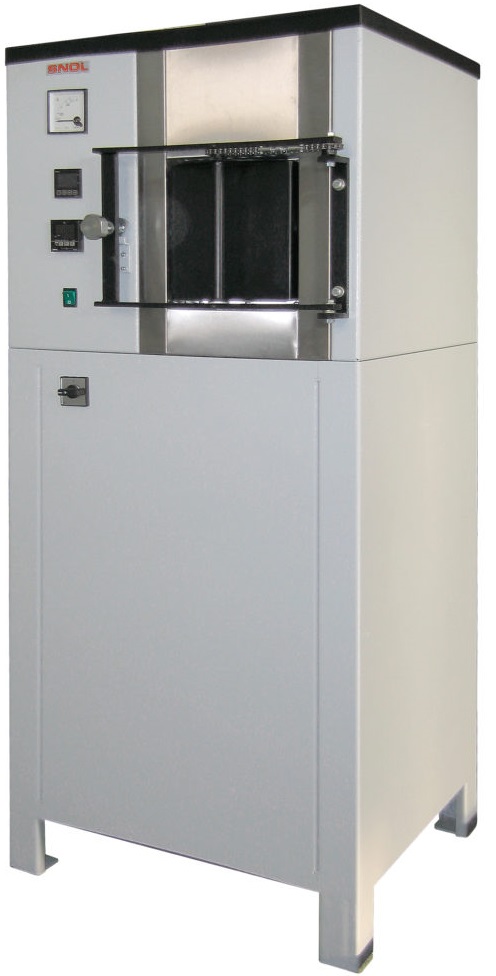

SNOL 8/1600 LSF01 LZM21 – Laboratory furnace 1100°C

High accuracy electric fiber-insulated chamber furnace SNOL 8/1600 is universal laboratory furnace, designed for materials testing, heat treatment such as hardening, loosening, normalizing, ceramic and stoneware samples firing up to 1600°C. The furnace is excellent fit for scientific laboratories, educational institutions, ceramic studios, medicine and industry.

BASIC MODEL

Chamber made of HT fiber thermal insulation plates
Exposed heat strips in two sides in the chamber
Outside casing – metal sheet, powder painted gray
Door opens to the right side
Door safety interlock switch
Control panel is on the left side
Microprocessor – temperature controller
Ceramic bottom plate
Fast heating time due to low thermal mass construction
Low power consumption
Good stability and uniformity
1 year warranty

OPTIONS

Additional ceramic bottom plates
Buzzer
Digital timer
Protection against overheating
Data recorder
Data communication/USB
Calibration of temperature measurement system
Table for supporting the furnace
Metal tray
Additional 1 year warranty

SNOL 8/1600 LSF01 LZM21 – Laboratory furnace 1100°C

Technical data	Dimension	SNOL 8/1600 LSF01
Useful volume	Liter	8
Rated power not more than	kW	8
Rated supply voltage	V	400
Rated frequency	Hz	50
Number of phases	–	3
Continuous operating temperature	°C	T+10-1600
Maximum temperature	°C	1600
Working chamber material	–	HT fiber plates
Maximum heating- up time (without charge)	Min.	240
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	± °C	1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than	±°C	10
Furnace working chamber dimensions:
width	mm	150
depth	mm	300
height	mm	150
Furnace external dimensions:
width	mm	605
depth	mm	580
height	mm	1395
Mass	kg	170
