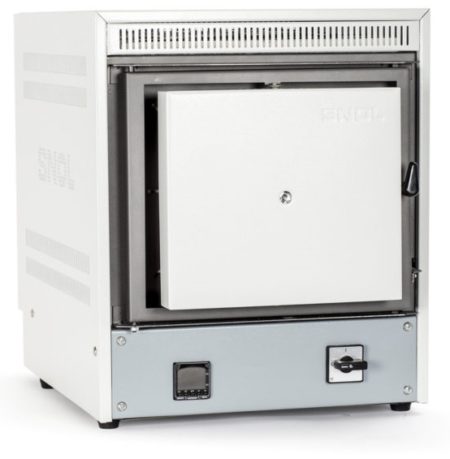

Name: SNOL 7,2/1100 LSC21 - Laboratory furnace 1100°C - LabTeamet
SKU: SN-7,2-1100-LSC21

Description

SNOL 7,2/1100 LSC21 – Laboratory furnace 1100°C

SNOL 7.2/1100 ashing furnace with solid ceramic chamber is designed for ashing and burn off processes up to 1100°C. Fan-assisted chimney permits to eliminate smokes from chamber during process time.

BASIC MODEL

Solid ceramic chamber
Partially exposed heating elements are in four sides around the chamber,
Fan-assisted chimney for smoke and humidity extraction
Continuous air change in the chamber
Door opens sideways
Door safety interlock switch
Control panel is placed in the underpart of the furnace
Microprocessor – temperature controller
Ceramic bottom plate
Outside casing – metal sheet, powder painted gray
High quality, ecological thermal insulation material
Low electric power consumption
Short heating up/cooling down period
High degree of accuracy
1 year warranty

OPTIONS

Process observation window (Ø 35 mm) up to 1100 °C
Additional ceramic hearth plates
Buzzer
Digital timer
Protection against overheating
Data recorder
Data communication/USB
Calibration of temperature measurement system
Table for supporting the furnace
Additional 1 year warranty

SNOL 7,2/1100 LSC21 – Laboratory furnace 1100°C

Technical data	Dimension	SNOL 7,2/1100 LSC21
Useful volume	Liter	7,2
Rated power not more than	kW	3,3
Rated supply voltage	V	230
Rated frequency	Hz	50
Number of phases	–	1
Continuous operating temperature	°C	T+10-1100
Maximum temperature	°C	1100
Working chamber material	–	Ceramic
Maximum heating- up time (without charge)	Min.	150
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	± °C	1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than	±°C	10
Furnace working chamber dimensions:
width	mm	195
depth	mm	295
height	mm	120
Furnace external dimensions:
width	mm	445
depth	mm	640
height	mm	525*
Mass	kg	50
