Name: SNOL 10/1300 LSM01 - Laboratory furnace 1300°C - LabTeamet
SKU: SN-10/1300-LSM01

Description

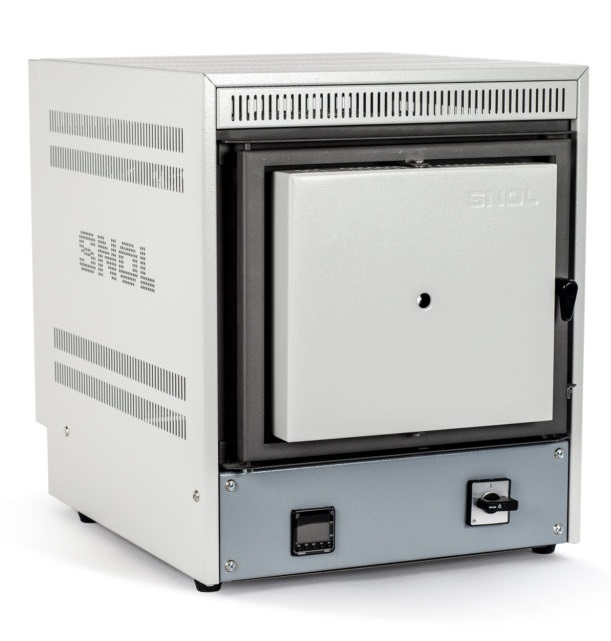

SNOL 10/1300 LSM01 – Laboratory furnace 1300°C

High accuracy electric muffle furnace SNOL 10/1300 is a universal laboratory furnace, firing up to 1300°C and designed for material testing and heat treatment such as hardening, loosening, normalizing ceramic and stoneware samples. To eliminate gases or smokes that are released during thermal processing, an exhaust system may be additionally installed in the product. The furnace is an excellent fit for scientific laboratories, educational institutions, ceramic studios, medicine and industry.

BASIC MODEL

One piece high thermal efficiency, vacuum-formed ceramic fiber chamber;
Heating elements are exposed on ceramic tubes in two sides of the chamber;
Outside casing – metal sheet, powder painted gray;
Door opens sideways;
Door safety interlock switch;
Control panel is placed in the underpart of the furnace;
Microprocessor – temperature controller;
Ceramic bottom plate;
Fast heating time due to low thermal mass construction;
Low power consumption;
Good stability and uniformity;
1 year warranty.

OPTIONS

Fan-assisted chimney for air extraction;
Additional ceramic hearth plates;
Buzzer;
Digital timer;
Protection against overheating;
Data recorder;
Data communication/USB;
Calibration of temperature measurement system;
Table for supporting the furnace;
Additional 1 year warranty.

SNOL 10/1300 LSM01 – Laboratory furnace 1300°C

Technical data	Dimensions	SNOL 10/1300 LSM01
Volume	Liters	10
Rated power not more than	kW	2.4
Rated supply voltage	V	230
Rated frequency	Hz	50/60
Number of phases	–	1
Continuous operating temperature	°C	T+10-1300
Maximum temperature	°C	1300
Working chamber material	–	Fiber muffle
Maximum heating- up time (without charge)	Min.	50
Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than	± °C	1
Temperature uniformity in working space at rated temperature in thermal steady state without charge not more than	±°C	10
Furnace working chamber dimensions:
width	mm	190
depth	mm	335
height	mm	170
Furnace external dimensions:
width	mm	500
depth	mm	710
height	mm	560
Mass	kg	38
