Name: CLW15 SMART - Incubator / Incubator cabinet with fan, 15 liters - LabTeamet
SKU: PE-CLW-15-SMART

Description

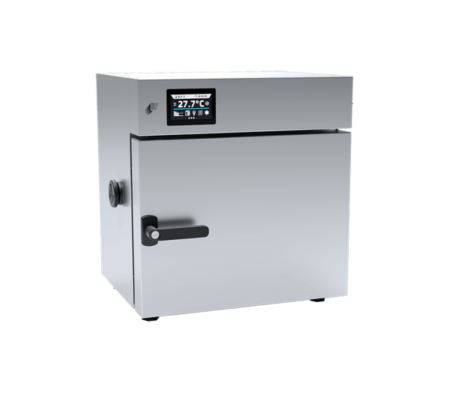

CLW15 Smart – Incubator / Incubator cabinet Volume 15 liters

Standard equipment CLW 15

temperature range + 5°C above ambient temperature … + 100°C
chamber capacity 15 liters
working capacity 15 liters
quality control protocol at + 37°C
over temperature protection 2.0 class (Smart), 3.1 class (Smart PRO) according to DIN 12880
open by alarm
air-flap Ø40 mm
LAN port and USB port
access port to enter an external sensor (Ø9 mm) on the left side of the unit
by lock
Stainless steel wire shelf (INOX)
double doors (external full, internal glass)
available controllers: Smart

Smart options

	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: GNZ	Internal socket
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.1	Over temperature protection 3.1 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: KD	Access control

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	15
working capacity [l]	15
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +100°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	0,4
temperature protection	class 2.0 to DIN 12880 / class 3.1 (option)
CHAMBER
door type	double(5)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	510
height B	550
depth C	470
internal dims [mm]
width D	320
height E	230
depth F	200

shelves (standard \| max)	1 \| 2
max shelf workload [kg] /2/	10
max unit workload [kg]	20
weight [kg]	32
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	350
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

	Produktblad – Inkubatorer Pol-Eko CLW15 SMART
	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
