Name: CLW1000 SMART - Incubator / Incubator cabinet with fan, 1005 liters - LabTeamet
SKU: PE-CLW-1000-SMART

Description

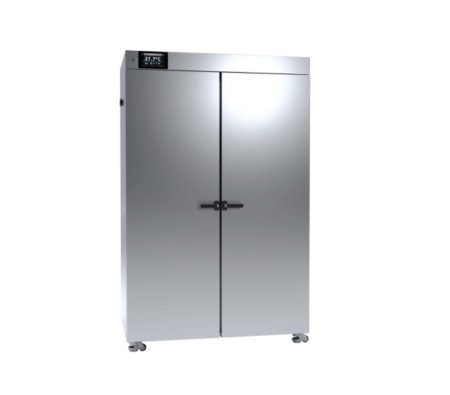

CLW1000 Smart – Incubator / Incubator cabinet Volume 1005 liters

Standard equipment CLW 1000
- temperature range + 5°C above ambient temperature … + 100°C
- chamber capacity 1005 liters
- working capacity 1005 liters
- quality control protocol at + 37°C
- over temperature protection 2.0 class (Smart), 3.1 class (Smart PRO) according to DIN 12880
- open by alarm
- air-flap Ø60 mm
- LAN port and USB port
- access port to enter an external sensor (Ø30 mm) on the left side of the unit
- by lock
- Stainless steel wire shelf (INOX)
- double doors (external full, internal glass)
- Wi-Fi communication (only Smart PRO)
- LAN cable (only Smart PRO)
- LabDesk software for, inter alia, downloading data on computer (only Smart PRO, for Smart version – optional)
- available controllers: Smart or Smart PRO

Smart options

	Order number: */A	door with viewing window
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order number: GNZ	Internal socket
	Order number: HEPA	HEPA Clean Air Filter
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.1	Over temperature protection 3.1 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Smart PRO options

	Order number: */A	door with viewing window
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order number: PT 100	Additional temperature sensor
	Order number: GNZ	Internal socket
	Order number: HEPA	HEPA Clean Air Filter
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control
	Order number: CCTV	Camera inside the chamber
	Order number: CCTV CAM	Additional camera

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	1005
working capacity [l]	1005
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +100°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 2.0 to DIN 12880 / class 3.1 (option)
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	1260
height B	2000
depth C	880
internal dims [mm]
width D	1040
height E	1610
depth F	600

shelves (standard \| max)	6 \| 22
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	300
– reinforced unit version (W) [kg] /4/	300
weight [kg]	319
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	1900
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	1005
working capacity [l]	1005
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +100°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,2
temperature variation at 37°C [+/-°C]*	1,0
temperature protection	class 3.1 to DIN 12880
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart PRO	acid-proof stainless steel to DIN 1.4301
IG Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
Smart PRO	powder coated sheet
IG Smart PRO	stainless steel linen finish
overall dims [mm] /1/
width A	1260
height B	2000
depth C	880
internal dims [mm]
width D	1040
height E	1610
depth F	600

shelves (standard \| max)	6 \| 22
– reinforced shelf version (PW) [kg] /3/	100
max unit workload [kg]	300
– reinforced unit version (W) [kg] /4/	300
weight [kg]	319
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	1900
warranty	24 months
manufacturer	POL-EKO

	Produktblad – Inkubatorer Pol-Eko CLW1000 SMART
	Produktblad – Inkubatorer Pol-Eko CLW1000 SMART PRO

	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
