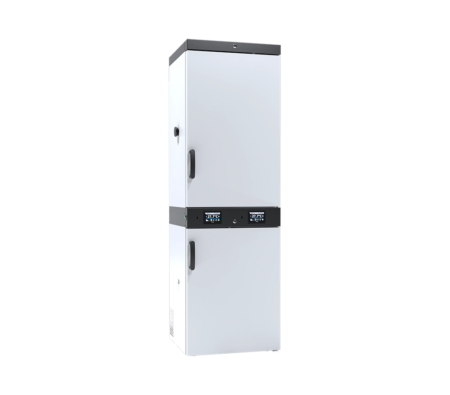

CHL3/ZLN85 SMART-SMART PRO – Laboratory refrigerator / Laboratory freezer 0…+15°C / -25…0°C, 163/73 liters

Technical data Smart

TECHNICAL DATA
air convection	forced / natural
chamber capacity [l]	200 / 85
working capacity [l]	163 / 73
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+15 / -25…0
temperature resolution every … [°C]	0,1
temperature fluctuation at 4°C [+/-°C]*	0,4
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at 4°C [+/-°C]*	0,7
temperature variation at -20°C [+/-°C]*	2
temperature protection	class 1.0 to DIN 12880 / class 3.2 (option)
CHAMBER
door type	solid / glass or double (option) /4/ | solid (ZL)
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	acid-proof stainless steel to DIN 1.4301
PS Smart	acid-proof stainless steel to DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	610
height B	1940
depth C	650
internal dims [mm]
width D	480 / 400
width D’	520 / 420
height E	660 / 590
depth F	420 / 400
depth F’	480 / 440
depth G	320 / 270
height H	640 / 380
shelves (standard | max)	3 | 4 / 2 | 4
max shelf workload [kg] /2/	10
max unit workload [kg]	30 / 30
weight [kg]	121
ELECTRICAL PARAMETERS
voltage	230V 50-60Hz
nominal power [W]	500
refrigerant	R1234ze / GWP=7 | R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced / natural
chamber capacity [l]	200 / 85
working capacity [l]	163 / 73
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+15 / -25…0
temperature resolution every … [°C]	0,1
temperature fluctuation at 4°C [+/-°C]*	0,4
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at 4°C [+/-°C]*	0,7
temperature variation at -20°C [+/-°C]*	2
temperature protection	class 3.2 to DIN 12880
CHAMBER
door type	solid / glass or double (option) /4/ | solid (ZL)
interior
C Smart PRO	stainless steel to DIN 1.4016
CS Smart PRO	stainless steel to DIN 1.4016
P Smart PRO	acid-proof stainless steel to DIN 1.4301
PS Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
C Smart PRO	powder coated sheet
CS Smart PRO	stainless steel polished
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	610
height B	1940
depth C	650
internal dims [mm]
width D	480 / 400
width D’	520 / 420
height E	660 / 590
depth F	420 / 400
depth F’	480 / 440
depth G	320 / 270
height H	640 / 380
shelves (standard | max)	3 | 4 / 2 | 4
max shelf workload [kg] /2/	10
max unit workload [kg]	30 / 30
weight [kg]	121
ELECTRICAL PARAMETERS
voltage	230V 50-60Hz
nominal power [W]	500
refrigerant	R1234ze / GWP=7 | R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO®

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as: K= +/- (T average max. – T average min. ) / 2; parameters given for the chamber above the bottom step
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door
