Name: ULTF-37i ATEX - Freezer, with solid door, -20°/-86°C 39 liters - LabTeamet
SKU: VF-ULTF-37i

Description

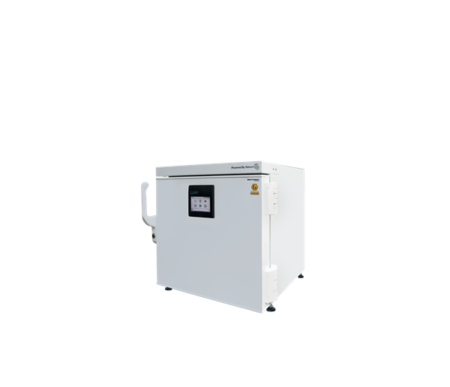

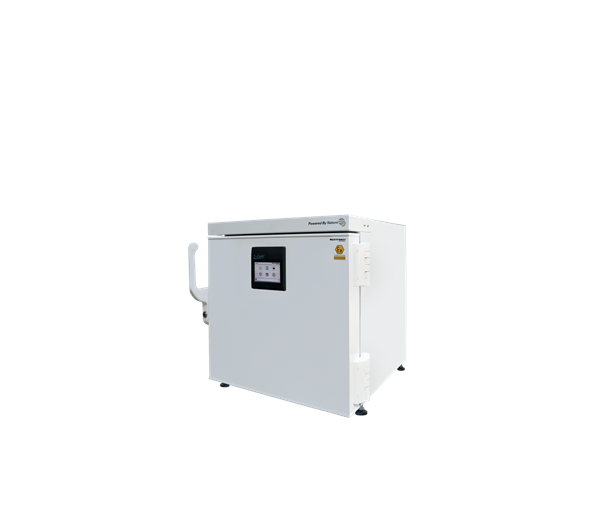

ULTF-37i ATEX – Freezer, with solid door, -20°/-86°C 39 liters

-20°C to -86°C Ultra Low temperature freezer

With the smallest footprint, this unit is perfect for storing biomedical content in a room with limited space. The unit can be place on a table for easy access in your work environment.

Featuring the ETR-System™(Extended Temperature Range) the unit can operate within -20°C to -86°C, giving you flexibility to adjust the cooling to your specific needs, or to save energy reducing both operation costs & carbon emission. Our biomedical appliances offer a reliable solution for users seeking industry leading cooling performance and high operation stability.

Complexity made simple

With the i-Care controller it has become much easier to access information, change settings, extract data and more. The controller features a 5 inch touchscreen with intuitive icons and easy to navigate menus. The i-Care controller makes complexity simple.

Adaptive Cooling Technology™

Operated by Adaptive Cooling Technology™ your Vestfrost biomedical appliance will always deliver efficient performance, by adapting the cooling power to match the situation. This means best in class cooldown, outstanding temperature stability, less noise and less energy consumption. With Adaptive Cooling Technology™ you get powerful performance where it matters.

Info center

Information is key to ensure proper storage of medicine & biological samples. The new i-Care series features a build-in datalogger, a live temperature graph and an event list, all of which provide you with a quick overview of the condition that your content is being stored at. The i-Care series gives you the information you need, to document the storage conditions of your content.

– ATEX

Dimension & construction

Dimension	631x630x675 HxWxD mm
Dimension inner	433x439x271 HxWxD mm
Weight	70 / 59 gross/net
Package weight	11 kg
Material inner cabinet	Stainless steel Kg. gross/net
Material outer cabinet	Painted steel Kg. gross/net
Insulation type	Polyurethane with cyclopentane
Insulation thickness	80 mm
Type of packaging	Cardboard, EPS, vinyl bag, wooden pallet
Mobility	4 x adjustable feet

Storage

Volume	37 / 37 Gross/net
Cryoboxes “2	33
2 ml vials	3.300

Features

Lock
LED light
Battery backup
Porthole
Porthole size	20 mm
Dry contact
Door reversibility
Vacuum valve
VIP (Vacuum Insulated Panel)

Alarms

High / Low temperature
Open door
Power failure
Probe failure

Operating conditions

Voltage	220 V
Frequence	50 / 60 Hz
Max ambient	43 °C
Max Humidity	65 %
Test condition	20 °C

Performance

Temperature range	-20 to -86 °C
Unifromity in performance	2,5 °C
Pull dowm time (from test condition to fabric setpoint)	84 Minutes
Hold over time (from fabric SP to critical point)	105 Minutes
Noise	46 dB
Energy 24 hours	3,2 kWh/24h
Energy year	1186 kWh/anno
Instant Power Consumption	PD 0,550 – 0,300 / Stable 0,270 kW
Heat Rejection	306 W
K-Value	0,19 W/m^2k

Cooling components

Refrigerant/amount	Nature R 2 / 96 Type & gram
Number of compressors	1
Variable speed compressor
Internal air distribution (Type)	Static
Evaporator fan
Condensor fan
Number of probes	2
Defrost

Controller

Controller	i-CARE
Controller type
USB Connection	Yes
Data connection	MODBUS
Controller abilities	Logging of data & alarms, touch screen
Controller languages	EN, DE, FR
Log numbers	More than a year
Temperature graph in controller
