Name: ZLN-T 300 SMART - Laboratory freezer -40°/0°, 310 liters - LabTeamet
SKU: PE-ZLN-300-T-SMART

Description

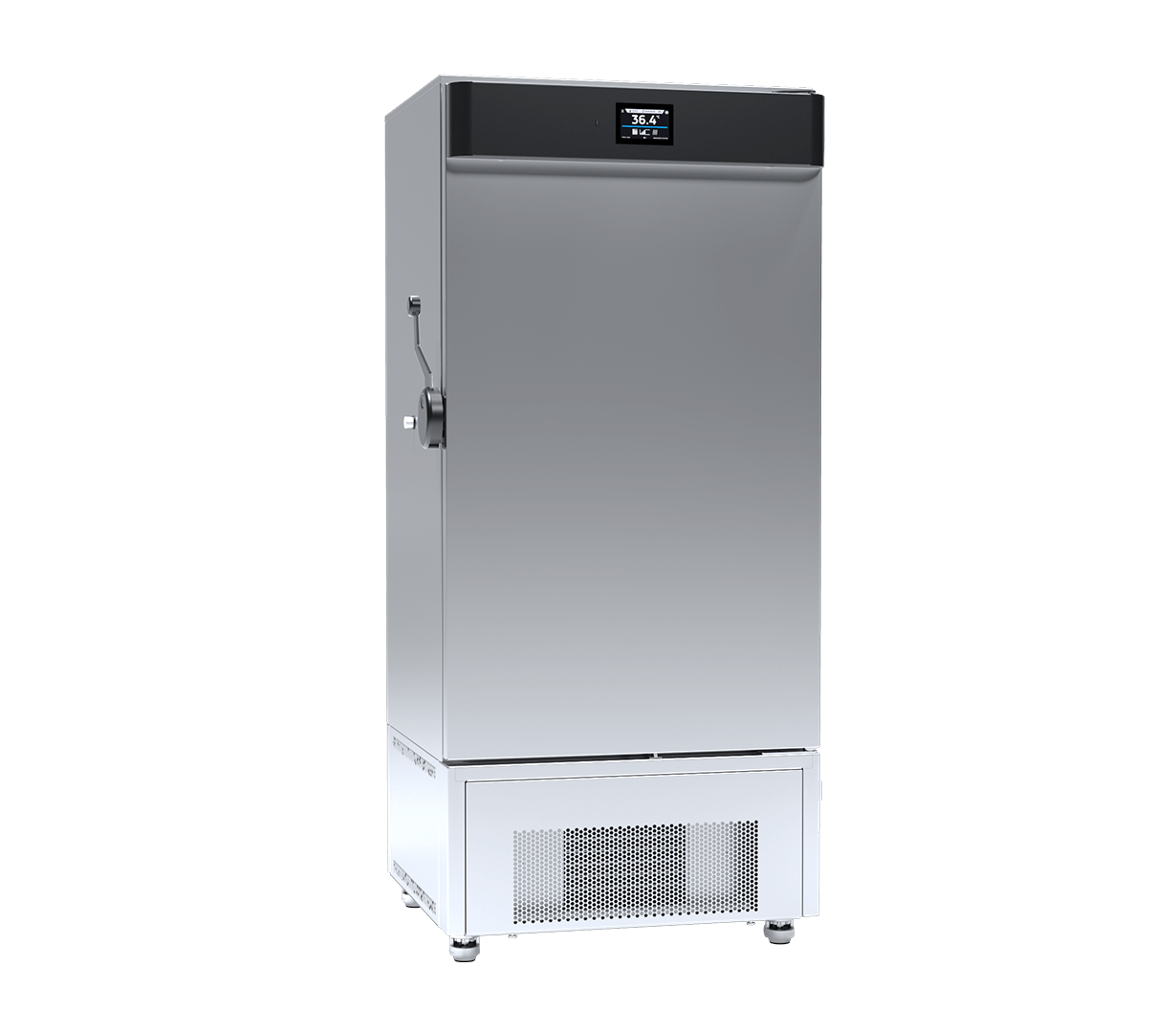

ZLN-T 300 Smart – Laboratory freezer Volume 310 liters

long-term storage of samples and biological material for research
storage of easily decomposing material (e.g. solid state)
freeze resistance tests (e.g. of building materials: concrete, wood etc.)
pre-freezing
plasma storage
Available versions: Smart, SmartPro
Volume: 310 liters

Smart options

	Order number: */PP	Perforated shelf
	Order number: */PO	Full shelf with hole
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.2	Over temperature protection 3.2 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: KD	Access control

Smart PRO options

	Order number: */PP	Perforated shelf
	Order number: */PO	Full shelf with hole
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: */W	Reinforced version
	Order number: OWW/OWW LED	Interior lighting
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.2	Over temperature protection 3.2 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: KD	Access control

Technical data Smart

TECHNICAL DATA
air convection	natural
chamber capacity [l]	310
working capacity [l]	262
controller	microprocessor PID
display	4,3″ full colour touch screen
insulation type	polyurethane foam
TEMPERATURE
temperature range [°C]	-40…0
temperature resolution every … [°C]	0,1
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at -20°C [+/-°C]*	2,5
temperature protection	class 3.2 to DIN 12880 (option)
CHAMBER
door type	solid
interior
C Smart	stainless steel to DIN 1.4016
CS Smart	stainless steel to DIN 1.4016
P Smart	DIN 1.4301
PS Smart	DIN 1.4301
housing
C Smart	powder coated sheet
CS Smart	stainless steel polished
P Smart	powder coated sheet
PS Smart	stainless steel polished
overall dims [mm] /1/
width A	820
height B	1730
depth C	810
internal dims [mm]
width D	450
width D’	520
height E	1120
depth F	520
depth F’	530

shelves (standard \| max)	3 \| 6
max shelf workload [kg] /2/	10
– reinforced shelf version (PW) [kg] /3/	50
max unit workload [kg]	80
– reinforced unit version (W) [kg] /4/	160
weight [kg]	185
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	450
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version

Technical data Smart PRO

TECHNICAL DATA
air convection	natural
chamber capacity [l]	310
working capacity [l]	262
controller	microprocessor PID
display	7″ full colour touch screen
insulation type	polyurethane foam
TEMPERATURE
temperature range [°C]	-40…0
temperature resolution every … [°C]	0,1
temperature fluctuation at -20°C [+/-°C]*	0,5
temperature variation at -20°C [+/-°C]*	2,5
temperature protection	class 3.2 to DIN 12880 (option)
CHAMBER
door type	solid
interior
P Smart PRO	DIN 1.4301
PS Smart PRO	DIN 1.4301
housing
P Smart PRO	powder coated sheet
PS Smart PRO	stainless steel polished
overall dims [mm] /1/
width A	820
height B	1730
depth C	810
internal dims [mm]
width D	450
width D’	520
height E	1120
depth F	520
depth F’	530

shelves (standard \| max)	3 \| 6
max shelf workload [kg] /2/	10
– reinforced shelf version (PW) [kg] /3/	50
max unit workload [kg]	80
– reinforced unit version (W) [kg] /4/	160
weight [kg]	185
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	450
refrigerant	R290 / GWP=3
warranty	24 months
manufacturer	POL-EKO

	Produktblad – Laboratoriefrys Pol-Eko ZLN-T300 SMART
	Produktblad – Laboratoriefrys Pol-Eko ZLN-T300 SMART PRO
	Pol-Eko komplett produktkatalog
	Produktinfo SMART_SMART-PRO
