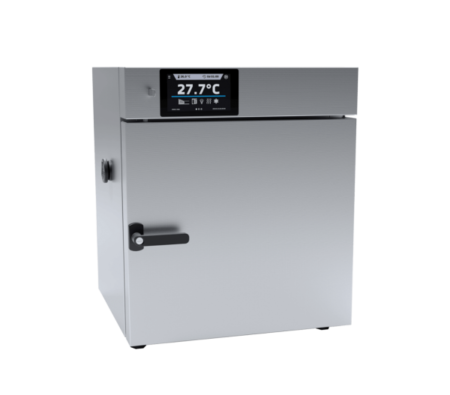

ILP53 SMART – Heating cabinet with Peltier technology (for cooling/heating). For good Environment, Work Environment and Performance, 56 liters

Technical data Smart

TECHNICAL DATA
air convection	forced
chamber capacity [l]	56
working capacity [l]	56
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+70 (max 20°C below ambient temperature)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,2
temperature protection	class 2.0 to DIN 12880 / class 3.3 (option)
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	590
height B	710
depth C	690
internal dims [mm]
width D	400
height E	390
depth F	360
shelves (standard | max)	2 | 5
max shelf workload [kg] /2/	25
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	500
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door

Technical data Smart PRO

TECHNICAL DATA
air convection	forced
chamber capacity [l]	56
working capacity [l]	56
controller	microprocessor PID
display	7″ full colour touch screen
TEMPERATURE
temperature range [°C]	0…+70 (max 20°C below ambient temperature)
temperature resolution every … [°C]	0,1
temperature fluctuation at 37°C [+/-°C]*	0,1
temperature variation at 37°C [+/-°C]*	0,2
temperature protection	class 3.3 to DIN 12880
CHAMBER
door type	double(5) / door with viewing window (option)
interior
Smart PRO	acid-proof stainless steel to DIN 1.4301
IG Smart PRO	acid-proof stainless steel to DIN 1.4301
housing
Smart PRO	powder coated sheet
IG Smart PRO	stainless steel linen finish
overall dims [mm] /1/
width A	590
height B	710
depth C	690
internal dims [mm]
width D	400
height E	390
depth F	360
shelves (standard | max)	2 | 5
max shelf workload [kg] /2/	25
max unit workload [kg]	50
weight [kg]	69
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	500
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
2 – on uniformly loaded surface
3 – reinforced shelf
4 – additional internal glass door
