Name: MPW260R - Refrigerated centrifuge - LabTeamet
SKU: MP-MPW 260R

Description

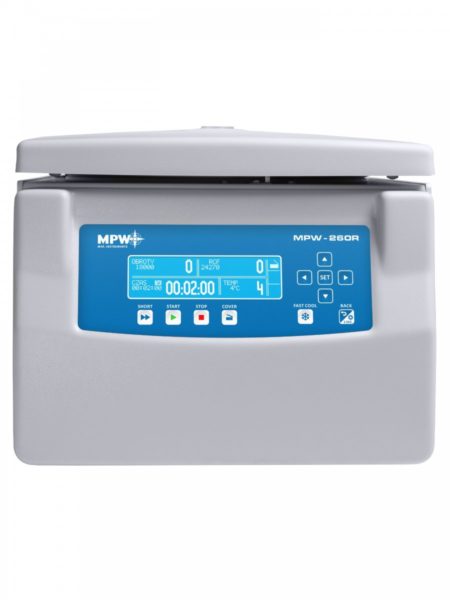

MPW260R – Refrigerated centrifuge

The MPW260R is a refrigerated bench top centrifuge. This centrifuge is suitable for all types of labs. The centrifuge is developed using the in-depth knowledge available within the company MPW Medical.

Characteristics

with refrigeration
possibility to use delayed start
efficient ventilation system
maintenance-free induction motor
modern programming system
large graphic LCD display
Simultaneous display of set and current RPM (revolutions per minute) and RCF (g-number)
99 user programs
10 acceleration / deceleration choices
multi-segment programming for acceleration and deceleration
RPM / RCF regulation
two different ways to count the time: from when you press start, or from when it reaches the set speed
HOLD continuous driving
running in “SHORT” mode (to quickly spin down)
possibility to change parameters while driving
rotor auto – identification
automatic opening of the hatch
logs driving parameters – MPW Editor – PC (USB)
change menu language (EN, EN, ES, IT, PT, DE, RU, SE, FR)
block selected features, password protection
programmable density setting for samples> 1.2g/cm3 (with automatic speed adjustment)
stainless steel centrifuge chamber
wide range of rotors and accessories

Security and safety

warning of imbalance
locked lid while driving
lockout with open lid
emergency opening
product compliant with international safety standards EN-61010-1 and EN-61010-2-020, EN-61010-2-101

MPW260R – Refrigerated Centrifuge

Teknisk information

Power supply :	230V 50Hz/60Hz; 100V, 110V, 120V, 127V 60Hz
Power [W] :	600
Capacity [ml] :	500 (24 kapilary)
Max. RPM [m^-1] :	90 ÷ 18 000
Max. RCF [x g] :	24 270
Setting time :	1s ÷ 99h 59min 59s + ∞, krok 1s
Dimensions H x W x D [mm] :	315 x 365 x 660
Weight [kg] :	42,2/44,3
Temperature :	-20°C ÷ +40°C

Rotorer

SWING-OUT ROTORS
Capacity
4x100ml 4x100ml – complete with 13719 buckets	5 000	3 158	30°	11718 + 13719
10x50ml – complete with 13276 buckets	4 500	2 830	30°	11744 + 13276
Round carriers for 15ml Falcon tubes (Ø 17 mm)				14089
Round carriers 30/25 ml (Ø 26×100 mm)				14248
8x50ml	5 000	3 494	30°	11213
Buckets with screw (Ø 30×99 mm) for 50 ml Falcon tubes and round carriers				13275
Buckets 50 ml with caps				13275C
Buckets for 50 ml Falcon tubes and round carriers				13276
6x50ml – complete with 13276 buckets	6 000	4 427	30°	11746 + 13276
Round carriers for 15ml Falcon tubes				14089
Round carriers 30/25 ml (Ø 26×100 mm) for buckets 13249-13250, 13266-13267, 13275-13276				14248
4×25/30ml – complete with 13329 buckets	6 000	4 829	45°	11742 + 13329
12×25/30ml – complete with 13329 buckets	4 500	2 716	30°	11743 + 13329
Round carriers for tubes 7 ml (Ø 13×100 mm)				14255
Round carriers for tubes 15/10 ml (Ø 17×120 mm)				14256
12×1,5/2ml	18 000	24 088	45°	11199
24×1,5/2ml	15 100	18 187	45°	11461
36×1,5/2ml	14 000	18 187	45°	11462
Round carriers 0,5 ml (Ø 8,0 mm)				14084
Round carriers 0,4 ml (Ø 5,7 mm)				14126
Round carriers 0,2 ml (Ø 6,2 mm)				14133
18x2ml filter	14 000	18 187	45°	11717
4x8x0,2ml PCR	14 000	15 339	45°	11716
12x5ml	14 000	19 064	30°	11216
8×10/15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°	11741 + 13080 or 13081
10x15ml – complete with 13080 or 13081 buckets	6 000	4 226	30°	11217 + 13080 or 13081
12×10/15ml – complete with 13080 or 13081 buckets	5 500	4 058	30°	11740 + 13080 or 13081
24×10/15ml – complete with 13080 or 13081 buckets	5 000	3 354	30°	11745 + 13080 or 13081
Round carriers 7/5 ml (Ø 13,3 mm)				14082
Capacity
4x100ml	4 000	2 469	–	12183
Hangers 2 x 15 ml Falcon with buckets 13080				13195C
Buckets for Arthrex ACP system with screw				13265
Buckets for Arthrex ACP system with caps 17265				13265C
Buckets 50 ml for Falcon tubes (Ø 30×100 mm) and carriers 14089, 14248				13266
Buckets 50 ml with screw for Falcon tubes (Ø 30×100 mm) and carriers 14248				13267
Buckets 50 ml with caps 17151 for Falcon tubes (Ø 30×100 mm) and carriers 14248				13267C
Buckets 100 ml (Ø 45×89 mm) for round carriers 14181, 14186-14192, 14024				13182
Buckets 100 ml (Ø 45×96 mm) with screw for round carriers 14024, 14181, 14186-14192, 14196				13184
Buckets 100 ml (Ø 45×96 mm) with caps 17185 for round carriers 14024, 14181, 14186-14192, 14196				13184C
Rubber pads under tubes 100/50/30/25 ml				14188
Rubber pads under glass tube 100 ml with stopper				14196
Round carriers 15 ml Falcon (Ø 17×120 mm)				14024
Round carriers 5 x 2/7 ml (Ø 12,5×100 mm)				14181
Round carriers 4 x 7 ml (Ø 13,1×100 mm)				14186
Round carriers 4 x 15/10 ml (Ø 16,5×112 mm)				14187
Round carriers 50 ml (Ø 30×120 mm) Falcon with rubber pads 14188				14189C
Round carriers 30/25 ml (Ø 25,5 mm) with rubber pads 14188				14190C
Round carriers for tube 50 ml (Ø 35 x100 mm) with rubber pads 14188				14192C
4x70ml	4 000	2 308	–	12232
Buckets 12 x 5 ml for Monovette tubes (Ø 13×81 mm)				13170
Buckets 70 ml ( Ø 57×66 mm) for round carriers 14169, 14235, 14238 – 14240, 14242				13233
Round carriers 8 x 4 ml (Ø 13×81 mm)				14169
Round carriers 12 x 5 ml (Ø 12×75 mm)				14235
Round carriers 7 x 10 ml (Ø 17×75 mm)				14238
Round carriers 7 x 5 ml (Ø 13,5×75 mm)				14239
Round carriers 9 x 2/1,5 ml (Ø 11×38,5 mm)				14240
Round carriers 12 x 1,2 ml S-Monovette (Ø 56×66 mm)				14242
SPECIAL ROTORS
Capacity
24 capillary 75mm	13 000	16 816	–	12300
Flat hematocrite reader				16135
Round – hematocrite reader				16164
6 casettes 20×0,4/0,2ml; 10×2/1,5ml	14 000	15 338	–	12172
RS-232 cable (1,8m)				16593

	Kylcentrifug MPW260R – Produktblad
	Centrifug MPW – Centrifuger, kort produktöversikt
	MPW Centrifuger – Komplett Produktkatalog
