Name: Himac Centrifuge with refrigeration - CR7N - 7.000 rpm or (RCF) 11.100xg - LabTeamet
SKU: HI-CR7N

Description

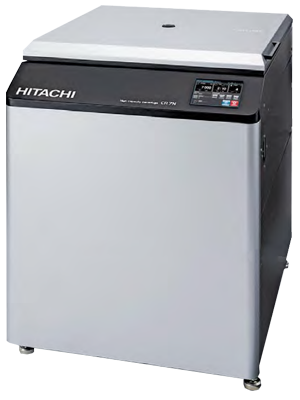

Himac Centrifuge with refrigeration – CR7N – 7.000 rpm or (RCF) 11.100xg

A compact and highly functional refrigerated centrifuge from Hitachi. There are several different rotors to choose from. For more specific information, see under technical information.

Large and easy-to-read LCD display with touch functions and zoom-in options to see certain parameters more easily
30 programmable programs
Economy mode (stops cooling and goes into standby mode to save energy)
Possibility to pre-cool the centrifuge, to reach the desired temperature faster
Up to 50 registered users with the option to block non-registered users
Both USB and LAN ports

Specifications

Max. Speed	7,000 rpm
Max. RCF	11,100 xg (R7A rotor)
Max. Nominal Capacity	6,000 mL (R7A rotor or R5S2 rotor)
Speed Control Range	from 300 to 7,000 rpm
Temperature Set Range	from -20 to +40 °C
Timer Set Range	“min:sec” unit mode : from 1 second to 99 min. 59 sec. with HOLD function “hr:mm” unit mode : from 1 min. to 99 hrs 59 min. with HOLD function
ACL/DCL mode	ACL : 9 modes / DCL : 9 modes with coasting
Program Function	30 programs, with RCF / g�Esec function
User Lockout Function	available
Machine Log Management Function	available
Driving Motor	Induction Motor (inverter-controlled)
Refrigerator	Fully enclosed (Refrigerant : R410A)
Safety Device	Door interlock, dual-overspeed detector, imbalance detector, and over-temperature detector
Display	Color touch-sensitive LCD *1
Applicable Standard	CE marking qualified Product Safety : EN61010-1 and EN61010-2-020 Electromagnetic compatibility : EN61326-1
Dimension	730 (W) x 845 (D) x 928 (H) mm (with optional rear duct *2 : 730 (W) x 948 (D) x 928 (H) mm) (from bottom to the chamber inlet : 869 (H) mm) (with optional pilot lamp : 1,250 (H) mm)
Weight	320 kg
Power Requirement	Single phase, AC 200/208/220/230/240 V +/-10%, 50/60Hz
Ambient Temperature	Ambient temperature for operation : from 2 to 40 ºC Ambient temperature for performance guarantee : from 15 to 25 ºC

Remarks :

*1:Please note that the LCD panel may contain a few dead or stuck pixels.*2:The optional rear duct is recommended to use for reduction of CR7N’s cooling ability degradation when centrifuges are aligned.

Fixed Angle Rotor model R7A (1,000ml x 6 bottles)

Swinging Bucket Rotor model R5S2 (1,000ml x 6 bottles)

Wide-mouth 1000PP bottle and 1000PC bottle

Swinging Bucket Rotor model R4SS2 (Exclusive rotor for blood bags)

Hitachi CR7N – Produktblad
