Name: Eppendorf 5810R - Refrigerated centrifuge - LabTeamet
SKU: EP-5811000010

Description

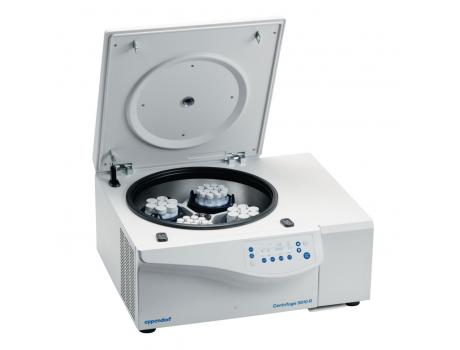

Eppendorf 5810R – Refrigerated Centrifuge

Characteristics

Rotors and adapters adapted to tubes and bottles with a volume between 0.2 mL and 750 mL
Plate rotor to centrifuge all types of plates MTP, PCR and deepwell plates
Fixed angle of the rotor for high speed rotation, for tubes between 0.2 ,mL up to 85 mL
High spin speed, up to 20,913 × g (14,000 rpm)
The lid closes with a soft touch
Easy to load and unload samples from the centrifuge, as the centrifuge is only 29 cm high
Very low noise level of the centrifuge during operation
Compact, saving counter space
Automatically detects and warns of imbalances

Additional features

Temperature range -9 °C to 40 °C
FastTemp function for fast cooling
After centrifugation, samples are kept refrigerated
After 8 hours of non-use, the centrifuge switches itself off, partly to save the environment and partly to save the compressor
Careful control of the compressor, to maximize the cooling process

Teknisk specifikation

	5810	5810 R
Max. RCF	20,913 × g	20,913 × g
Max. RCF with fixed-angle rotor	20,913 × g	20,913 × g
Max. RCF with swing-bucket rotor	4,500 × g	4,500 × g
Max. RCF with plate rotor	3,486 × g	3,486 × g
Max. speed	14,000 rpm	14,000 rpm
Speed	200 – 14,000 rpm	200 – 14,000 rpm
Max. capacity	4 × 750 mL/ 4 × 4 MTP	4 × 750 mL/ 4 × 4 MTP
Rotors available	18	18
Acceleration/braking ramps	10/10	10/10
Number of programs	35 user-defined programs	35 user-defined programs
Display	large, brightly lit LCD	large, brightly lit LCD
Timer	1 min to 99 min, with continuous run function, short-spin	1 min to 99 min, with continuous run function, short-spin
Noise level	<70 dB(A)	<56 dB(A)
Volume range	3 L	3 L
Power supply	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz
Max. power consumption	900 W	1,650 W
Dimensions (W × D × H)	53.5 × 60.8 × 34.5 cm / 21.1 × 23.9 × 13.6 in	70.0 × 60.8 × 34.5 cm / 27.6 × 23.9 × 13.6 in
Footprint (dimensions w/o front panel, WxD)	54 × 54 cm	70 × 54 cm
Height (with open lid)	80 cm	80 cm
Height (with open lid) (US)	31.5 in	31.5 in
Height (with open lid)	80 cm / 31.5 in	80 cm / 31.5 in
Weight w/o accessories	68 kg / 150 lb	99 kg / 218 lb
Cooling	non-refrigerated	refrigerated
Temperature control range	–	-9 °C to 40 °C
Noise level
Rotor FA-45-6-30 (6×50 mL)	<56 dB(A)	<55 dB(A)
Rotor S-4-104 (4×750 mL)	<59 dB(A)	<56 dB(A)
Rotor S-4-72 (4×250 mL)	–	–
Max. capacity
Conical tubes	56 × 15 mL/ 28 × 50 mL	56 × 15 mL/ 28 × 50 mL
Blood collection tubes	100 × 13 mm/ 80 × 16 mm	100 × 13 mm/ 80 × 16 mm
Plates	16 × MTP/ 4 × DWP	16 × MTP/ 4 × DWP

	Kylcentrifug Eppendorf 5810R Produktblad
	Kylcentrifug Eppendorf 5810R Produktblad – IVD version
	Eppendorf produktkatalog
