Name: Himac Ultracentrifuge CP100NX - 100.000 rpm or (RCF) 803.000xg - LabTeamet
SKU: HI-901067C2

Description

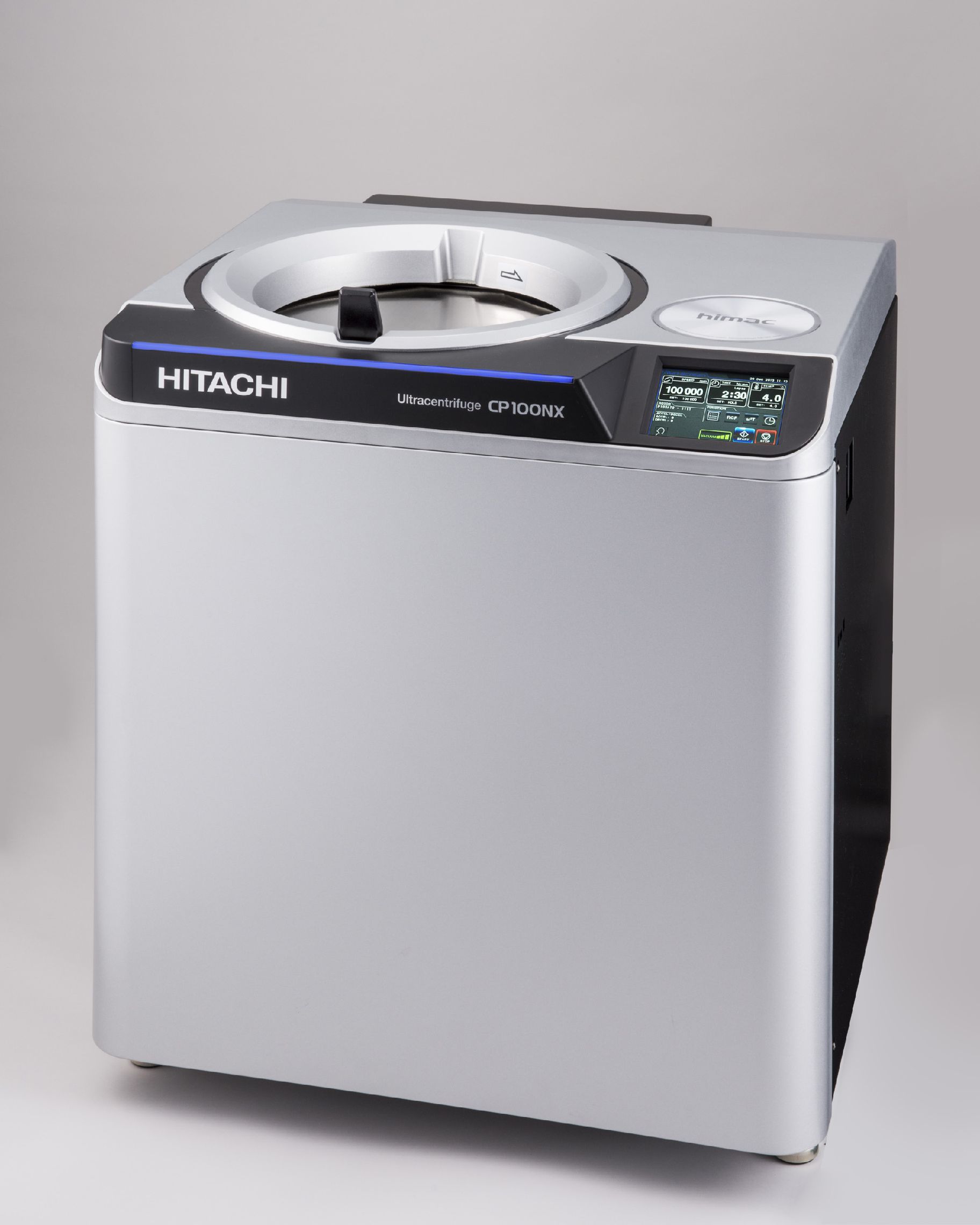

Himac Ultracentrifuge CP100NX – 100.000 rpm or (RCF) 803.000xg

The CP10NX ultracentrifuge is an ultracentrifuge with outstanding features. Perfect in all labs that work with any kind of separation.

User-friendly
Easy to handle rotor, due to compact and flexible design
Speed: 100,000 rpm and RCF up to 803,000 x g
10-year warranty on the drive unit
Powerful protection against imbalances
Rotor lifetime managed with automatic controls
Low impact on the environment
0°C hole with the help of electronic cooling
Saving energy and the economy
Quiet, 51 dB or less
Control system for the deceleration
Self-locking rotor

Himac Ultracentrifuge CP100NX – 100.000 rpm or (RCF) 803.000xg

Specification

Model	CP100NX	CP90NX	CP80NX
Max. Speed (rpm)	100,000	90,000	80,000
Max.RCF (xg)	803,000 (P100AT2)	700,000 (P90AT)	615,000 (P80AT)
Speed Control Accuracy	±2 rpm (1,000 rpm to max. speed)
ACCEL/DECEL Mode	ACCEL : 10 / DECEL : 11 (10 and coasting)
Set Speed Range	1,000 rpm to max. speed in increments of 100 rpm
Timer	from 1 min to 999 hours 59 min (with 1 min increments) with HOLD function
Set Temperature Range	from 0ºC to 40ºC with 1ºC increments (Accuracy : +/- 0.5ºC)
Vacuum System	Oil rotary vacuum pump and oil diffusion pump
Operating Sound	51dB(A) (running at set speed, under in-house test condition)
Heat Radiation Into a Room	1kW or below
Cooling System	Thermo-module cooling system (CFC/HCFC/HFC-free)
Control Panel	Touch-sensitive color LCD panel (6.5 inch)
Data Communication	USB : Host x 1, Devise x 1 / LAN x 1
Rotor Life Management	Automatic Rotor Life Management for rotors with RLM adapter Registered by serial number to the system for rotors with optical overspeed disk
Size (mm)	790 (W) x 690(D) x 880(H) (with door cover : 890(D)) Max. height to the end of the door handle : 925(H) / Height to the table : 863(H)
Floor area (m²)	0.81 (900 x 900 mm)
Weight (kg)	390
Power	Single phase, AC200V, 208V and 220V +/-10%, Max. 20A (normally 8A) Single phase, AC230V and 240V +/-10%, Max. 16A (normally 7A)
Installation Environment	Ambient temperature for operation : 2ºC to 40ºC Ambient temperature for performance guarantee : 10ºC to 30ºC
Standard	CE marking qualified Product Safety : EN61010-1 and EN 61010-2-020 Electromagnetic Compatibility : EN 61326-1
Warranty of Drive Unit	10 years after the shipment (Full warranty) *1
Part No. (Asia/Middle East)	901067C1	901068C1	901069C1
Part No. (EU market)	901067C2	901068C2	901069C2
Part No. (USA/Canada)	901067C3	901068C3	901069C3
Catalog	CP-NX SERIES catalog (PDF:640kb)

*1: Limited to appropriate operation after the installation by our authorized engineer.please refer to the operation manual for detailed conditions.)
*2: CP-NX series is not registered as medical device in Japan.
*3: Due to safety reasons, installation environments, operation environments and conditions may be restricted.

Produktblad för Ultracentrifug CP100NX

Videoklippet visar en översikt för Hitachi Ultracentrifuger

Videoklippet visar Hitachi S cap serien för Ultracentrifuger
