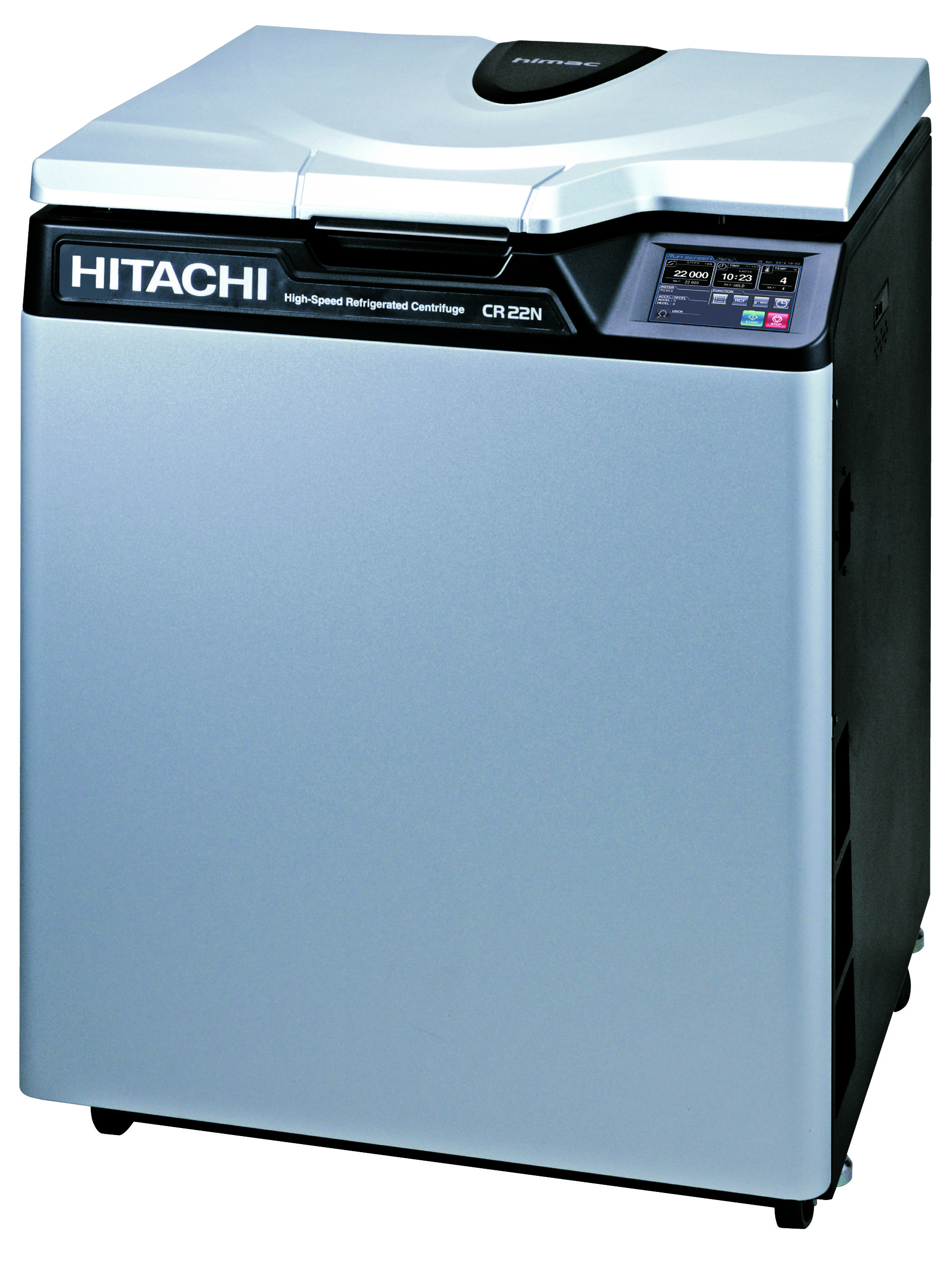

Himac High speed centrifuge with refrigeration – CR22N – 22.000 rpm or (RCF) 55.200xg

CR22N left

22.000 rpm or (RCF) 55.200xgSet temp -20 to +40°C, floor model

Hitachi Grey 2

Quick request (this product)
Artikelnr: HI-903350C2 Kategori:

Questions on Himac High speed centrifuge with refrigeration – CR22N – 22.000 rpm or (RCF) 55.200xg?

Call 042-300 91 30 or email info@labteamet.com

Description

Himac High speed centrifuge with refrigeration – CR22N – 22.000 rpm or (RCF) 55.200xg

The 6L rotor was only available for large capacity refrigerated centrifuges or for high-end models. However, with a newly developed drive unit and 1.5 liter bottles, you can now use this rotor with the CR22N. You can spin 4 1.5 liter bottles per time. This refrigerated centrifuge is compact and has a range of smart features.

  • Easy to use
  • Large and easy-to-read LCD display with touch functions and zoom-in options to see certain parameters more easily
  • Self-locking rotor system
  • At maximum speed, 4ºC is maintained
  • Automatic stop in case of imbalance
  • Economy mode (stops cooling and goes into standby mode to save energy)
  • Braking system, which converts the heat generated during braking into electricity, which is used for operation
  • Automatic recognition of the rotor
  • Automatic recognition of the rotor cover
  • Possibility to pre-cool the centrifuge, to reach the desired temperature faster
  • Up to 40 registered users with the option to block non-registered users
  • Both USB and LAN ports

Himac High speed centrifuge with cooling – CR22N – 22.000 rpm or (RCF) 55.200xg

Specification


Model CR22N (CE Model) CR22N (Non-CE model)
Max. Speed 22,000 rpm
Max. RCF 55,200 Xg (R22A4)
Max. Capacity 1,500ml x 4 bottles (R9A2)
Speed Control Range from 300 to 22,000 rpm
Temperature Control Range from -20 to +40 °C
ACL/DCL Mode ACL : 9 modes, DCL : 9 modes with coasting
Program Function 30 programs, with RCF / g • sec function
Drive Unit Induction Motor (Inverter)
Refrigerator Closed Inverter Rotary Type (Refrigerant : R410A)
Safety Function Interlock Door, Dual Over Speed Detection
Non-contact Imbalance Detection, Abnormal Temp. Detection etc.
Variable Deceleration Slope Yes
(beside DCL mode, moderate deceleration or free coast is selectable.)
User Lockout Function Yes
Data Communication USB port (operating history can be output through USB port.)
Operating Log Management LAN port : factory option or on-site modification
PC and optional “himac LogManager Ver.4.0 for Windows® (Network Edition)” is required.
Supporting GMP/GLP
Display 5.7 inch color touch-sensitive LCD panel
Keypad Pop-up keyboard and icons on the display
Noise 64dB(A) at 1m front (at 22,000rpm)
Economy Mode Yes
Continuous Flow Rotor Yes N/A
Standard CE Marking N/A
(1) EMC Directive EN61326-1
(2) LVD and MD ** EN61010-1, EN61010-2-020
Dimensions 700 (W) x 760* (D) x 915 (H) mm (height to chamber : 853)
*Measurement including rear duct ass’y
Weight 260 kg
Power Requirement Single Phase, AC200/208/220/230/240V +/-10%, 50/60Hz, 30A
Part No. (Asia/Middle East) 903350C1 90335001
Part No. (EU market) 903350C2 N/A
Part No. (US/Canada) 903350C3 N/A
Catalog

Remarks :

*
Please note that LCD panel may contain a few dead or stuck pixels.
**
LVD : Low Voltage Directive, MD : Machinery Directive



pdficon Produktblad för Höghastighetscentrifug Hitachi Himac CR22N

Videoklippet visar Hitachi Himac CR22N – Höghastighetscentrifug med kyla





Videoklippet visar Rotor R9A2 för 4×1,5 liter samt flaskor 1,5l
