Name: SRN115 SMART - Sterilizer / Sterilizer cabinet without fan,112 liters - LabTeamet
SKU: PE-SRN-115-SMART

Description

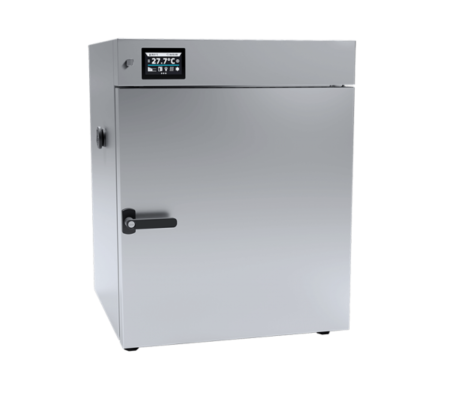

SRN115 Smart – Sterilizer / Sterilizer cabinet Volume 112 liters

Standard equipment SRN 115

temperature range + 5°C above ambient temperature … + 250°C
chamber capacity 112 liters
working capacity 112 liters
quality control protocol at +105°C
over temperature protection 2.0 class according to DIN 12880
open by alarm
air-flap Ø40 mm
LAN port and USB port
access port to enter an external sensor (Ø30 mm) on the left side of the unit
by lock
Stainless steel wire shelf (INOX)
external full doors
sterilization programs (including mask sterilization program)
automatic door lock during the sterilization program
air-flap closed automatically after starting the sterilization program
possibility to remember 3 factory and 5 any user programs
available controllers: Smart

Options and accessories

	Order number: */A	door with viewing window
	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: */PW	Reinforced shelf
	Order number: KUW GN/	Stainless steel bowls
	Order number: QLK*	Castors
	Order number: /S or /S INOX	Table with castors
	Order number: /ST or /S INOX	Base on castors
	Order number: OWW/OWW LED	Interior lighting
	Order number: HEPA	HEPA Clean Air Filter
	Order numberLabDesk	LabDesk software
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification
	Order number: */3.1	Over temperature protection 3.1 class according to DIN 12880
	Order number: BPP 12	Battery backup for display
	Order number: PORT ALARM	Dry alarm contact
	Order number: USBK	USB cable
	Order number: LANK	LAN cable
	Order number: OCZ/20	Non-standard access port 20 mm
	Order number: OCZ/30	Additional access port 30 mm
	Order number: OCZ/60	Non-standard access port 60 mm
	Order number: OCZ/100	Non-standard access port 100 mm
	Order number: KD	Access control

Technical data

TECHNICAL DATA
air convection	natural
chamber capacity [l]	112
working capacity [l]	112
controller	microprocessor PID
display	4,3″ full colour touch screen
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +250°C
temperature resolution every … [°C]	0,1
temperature fluctuation at 105°C [+/-°C]*	0,4
temperature variation at 105°C [+/-°C]*	2,2
temperature protection	class 2.0 to DIN 12880 / class 3.1 (option)
CHAMBER
door type	solid / door with viewing window (option)
interior
Smart	acid-proof stainless steel to DIN 1.4301
IG Smart	acid-proof stainless steel to DIN 1.4301
housing
Smart	powder coated sheet
IG Smart	stainless steel linen finish
overall dims [mm] /1/
width A	660
height B	850
depth C	710
internal dims [mm]
width D	460
height E	540
depth F	450

shelves (standard \| max)	2 \| 7
max shelf workload [kg] /2/	25
– reinforced shelf version (PW) [kg] /3/	50
max unit workload [kg]	60
weight [kg]	65
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	2500
warranty	24 months
manufacturer	POL-EKO

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable
2 – on uniformly loaded surface
3 – reinforced shelf
4 – reinforced version
