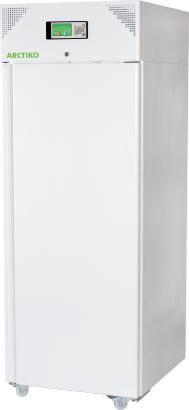

Lab freezer spark-free interior, ATEX, Cabinet, -30°/-10°C 618 liters
Call 042-300 91 30 or email info@labteamet.com
With a sophisticated design and world-class cooling, Arctikos freezers are reliable, safe and secure units. You don’t have to worry about your samples. The LF700-ATEX laboratory freezer has a solid door and spark-free interior that is ATEX certified (EN 60079-15 category 3, zone II. CE EX 11-/3G).
| Item code | DAI 0255 / DAI 0256 |
| Temperature range (°C) | -10 / -30 |
| Max. ambient temperature (°C) | 25 |
| Capacity (L) | 618 |
| Exterior dimensions WxDxH (mm) | 720x860x1997 |
| Interior dimensions WxDxH (mm) | 600x685x1505 |
| Weight (KG) | 133 |
| Insulation (mm) | 60 |
| Cooling technology | air forced |
| Controller model / probe type | G-214 / PT 1000 |
| Power supply (V) | 230 |
| Frequency (Hz) | 50/60 |
| Power consumption (KWH/24H) | 9,8 |
| AMP (A) | 4,0 |
| Power (Watt) | 550 |
| Horse Power (HP): | 5/8 |
| Alarm display as text – not codes | yes |
| Visual / Acoustic Alarm: | yes / yes |
| Power failure alarm | yes |
| Ajustable high/low temperature alarm: | yes / yes |
| Open door alarm | yes |
| Probe failure alarm | yes |
| Low battery alarm | yes |
| Compressor failure alarm | no |
| Battery backup for alarms (approx. hrs.) | 72 |
| Voltage free contact for remote alarm (e.g. GSM alarm module) | yes |
| Electronic data logger | yes |
| RS 485 port | yes |
| USB port for software update & data download | yes |
| Temperature chart recorder | Optional |
| Display type | 4,3” with touch buttons |
| Password protection for turning unit on/off | yes |
| Temperature graph on display | yes |
| Automatic defrost | yes |
| Antifreeze function | no |
| Vaccum release port | no |
| Access port for external probe etc. (Int. diameter mm) | 12 |
| Light | no |
| Lock with key | yes |
| Castors (total pcs) / castors with brake (pcs) | 4 / 2 |
| Fixed feet (pcs) / levelling feet (pcs) | no |
| Sub lids / sub doors (qty) | no |
| Reversible doors (qty) | yes |
| Fixed shelves (pcs) / adjustable shelves (pcs) | 0 / 3 |
| Max. no. of shelves (pcs) / recommended max. no. of shelves (pcs) | 23 / 11 |
| Max load shelves (kg) | 30 |
| Adjustable drawers (pcs) | optional |
| Max. no. of adjustable drawers (pcs) | 8 |
| Max. load per adjustable drawer (kg) | 30 |
| Basket | no |
| Number of compressors | 1 |
| Refrigerant | R290 |
| Interior cabinet material | stainless steel |
| Exterior cabinet material | electrogalvanized steel / stainless steel |
| Colour (exterior cabinet) | white / stainless steel |
| Shipping volume (m³) | 1,88 |
| Foam type | polyurethane |
| Shipping weight (KG) | 194 |
| Shipping dimensions WxDxH (cm) | 102x84x220 |
| Shipping volume (m³) | 1,88 |
 |
