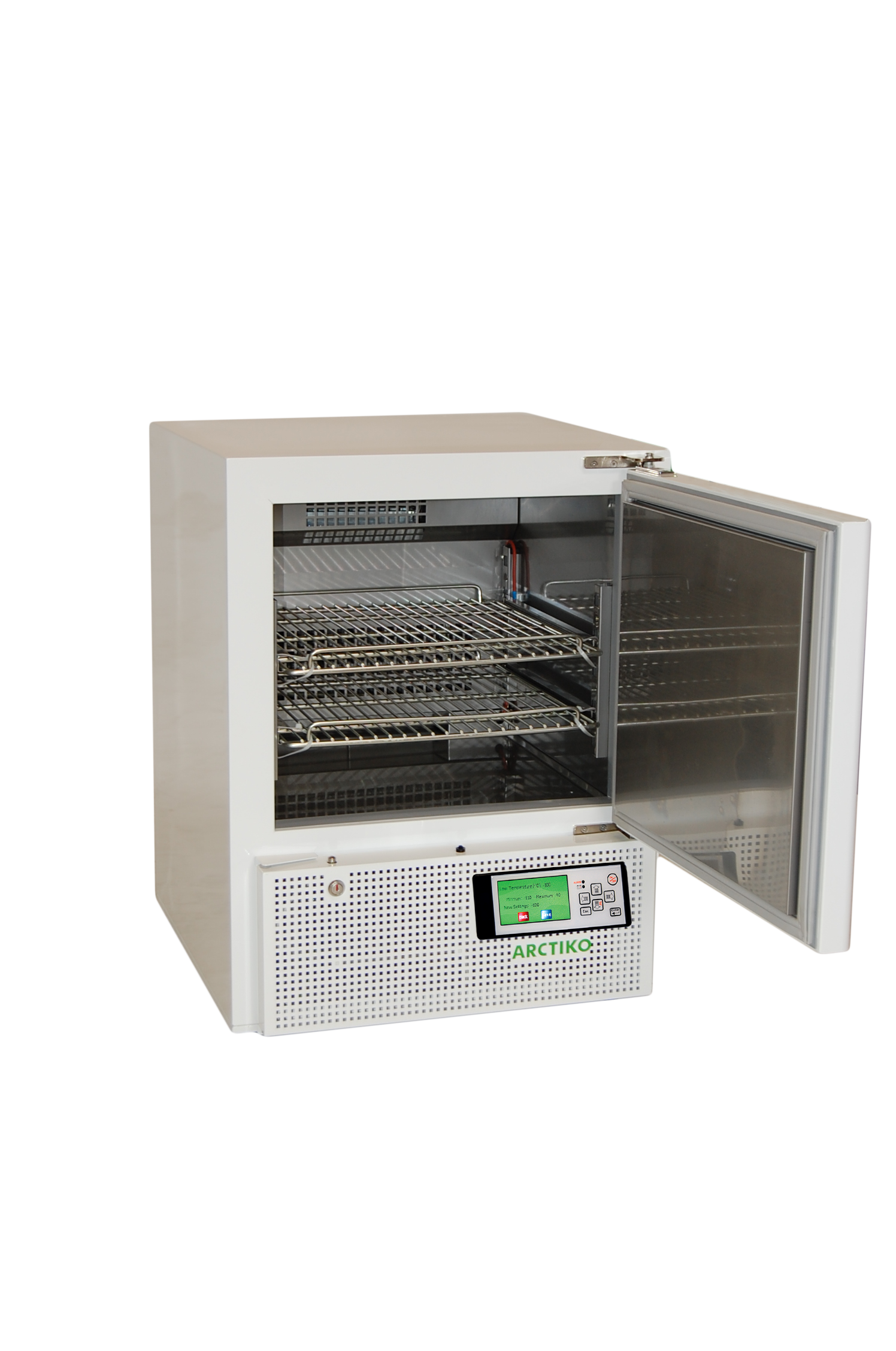

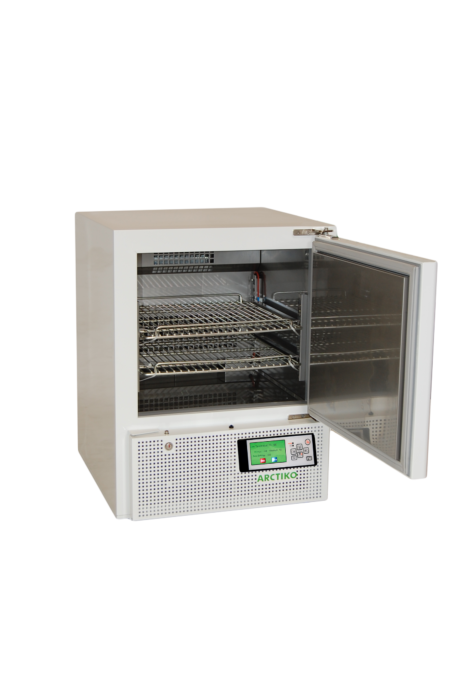

Lab freezer spark-free interior, ATEX, Cabinet, -30°/-10°C 94 liters
Call 042-300 91 30 or email info@labteamet.com
With a sophisticated design and world-class cooling, Arctikos freezers are reliable, safe and secure units. You don’t have to worry about your samples. The LF100-ATEX laboratory freezer has a solid door and spark-free interior that is ATEX certified (EN 60079-15 category 3, zone II. CE EX 11-/3G).
Main Specifications
| Item Code | DAI 0285 / 1400001 |
| Temperature Range (°C) | -10 / -30 °C |
| Max. Ambient Temperature (°C) | +25 °C |
| Capacity (L) | 94 |
| Exterior Dimensions WxDxH (mm) | 610 X 659 X 790 |
| Interior Dimensions WxDxH (mm) | 490 X 440 X 434 |
| Weight (KG) | 65 |
| Insulation (mm) | 60 |
| Cooling Technology | Forced Air |
| Controller Model / Probe Type | Arctiko G 214® / Pt1000 |
| Power Supply (V) | 230 |
| Frequency (Hz) | 50/60 |
| Power Consumption (KWH/24H) | 10.1 |
| AMP (A) | 3.7 |
| Power (Watt) | 559 |
| Horse Power (HP) | 3/8 |
Display / Data / Alarm
| Alarm Display As Text – Not Codes | Yes |
| Visual / Acoustic Alarm | Yes / Yes |
| Power Failure Alarm | Yes |
| Adjustable High/Low Temperature Alarm | Yes / Yes |
| Open Door Alarm | Yes |
| Probe Failure Alarm | Yes |
| Low Battery Alarm | Yes |
| Compressor Failure Alarm | – |
| Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module) | Yes |
| Electronic Data Logger | Yes |
| RS 485 Port | Yes |
| USB Port For Software Update & Data Download | Yes |
| Temperature Chart Recorder | Optional |
| Display Type | 4.3″ with Touch Buttons |
| Number Of Optional Reference Probes | 2 |
| Password Protection for Turning On/Off | Yes |
| Temperature Graph on Display | Yes |
Other Features
| Automatic Defrost | Yes |
| Antifreeze Function | No |
| Vacuum Release Port | No |
| Access Port For External Probe Etc. (Int. Diameter mm) | Optional |
| Light | No |
| Lock With Key | Yes |
| Castors (Total Pcs) / Castors With Brake (Pcs) | 2 Rollers / 0 |
| Fixed Feet (Pcs) / Levelling Feet (Pcs) | 0 / 2 |
| Sub Lids Or Inner Doors (Pcs) | No |
| Reversible Doors (Pcs) | No |
| Fixed Shelves (Pcs) / Adjustable Shelves (Pcs) | 0 / 2 |
| Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs) | 5 / 3 |
| Max Load Per Shelf (Kg) | 30 |
| Adjustable Drawers (Pcs) | Optional |
| Max. No. Of Adjustable Drawers (Pcs) | 2 |
| Max. Load Per Adjustable Drawer (Kg) | 30 |
| Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs) | No |
| Max. No. Of Blood Bags – By Max. No. Of Adj. Drawers (Pcs) | No |
| Basket (Pcs) | No |
| Max. No. Of Baskets (Pcs) | No |
| Max. Load Per Basket (Kg) | No |
| Total Capacity Of 50 Mm Boxes 9×9 Dividers (Pcs) | No |
| Total Capacity Of 75 Mm Boxes 9×9 Dividers (Pcs) | No |
| Total Capacity Of 96 Mm Boxes 9×9 Dividers (Pcs) | No |
Refrigerant & Cabinet
| Number Of Compressors | 1 |
| Refrigerant | R290 |
| Interior Cabinet Material | Stainless Steel |
| Exterior Cabinet Material | Painted Steel |
| Colour (Exterior Cabinet) | White |
| Foam Agent | Polyurethane |
| VIP Vacuum Insulated Panels | No |
Shipping
| Shipping Weight (KG) | 87 |
| Shipping Dimensions WxDxH (cm) | 81 x 69 x 103 |
| Shipping Volume (M³) | 0.58 |
 |
