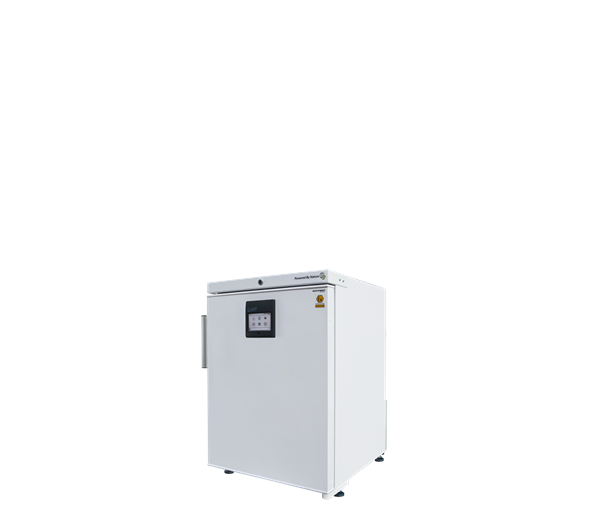

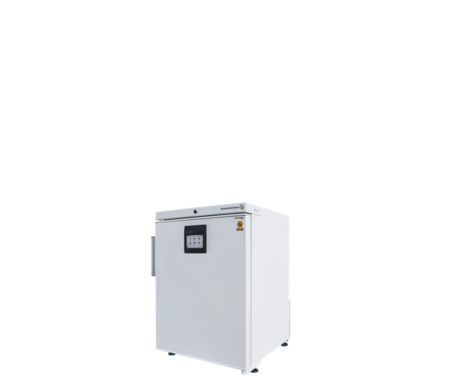

F-138i – Lab freezer, with solid door, -5°/-25°C 138 liters
Call 042-300 91 30 or email info@labteamet.com
+-5°C to -25°C Freezer
With the smallest footprint, this unit is perfect for storing biomedical content in a room with limited space. The unit can be place on a table for easy access in your work environment.
Featuring the ETR-System™(Extended Temperature Range) the unit can operate within -5°C to -25°C, giving you flexibility to adjust the cooling to your specific needs, or to save energy reducing both operation costs & carbon emission. Our biomedical appliances offer a reliable solution for users seeking industry leading cooling performance and high operation stability.
Information is key to ensure proper storage of medicine & biological samples. The new i-Care series features a build-in datalogger, a live temperature graph and an event list, all of which provide you with a quick overview of the condition that your content is being stored at. The i-Care series gives you the information you need, to document the storage conditions of your content.
– ATEX
Dimension & construction
| Dimension | 825x595x642 HxWxD mm |
| Dimension inner | 676x475x495 HxWxD mm |
| Weight | 60 / 49 gross/net |
| Package weight | 11 kg |
| Material inner cabinet | ABS Kg. gross/net |
| Material outer cabinet | Painted steel Kg. gross/net |
| Insulation type | Polyurethane with cyclopentane |
| Insulation thickness | 50 mm |
| Type of packaging | Cardboard, EPS, vinyl bag, wooden pallet |
| Mobility | 4 x Adjustable feet |
Storage
| Volume | 138 / 117 Gross/net |
| Shelves | 2 |
| Half shelf | 1 |
Features
| Lock |  |
| LED light | |
| Battery backup | |
| Porthole | |
| Porthole size | 20 mm |
| Dry contact | |
| Reference bottle |  |
| Door closure | |
| Door reversibility | |
| Automatic hold 90° | |
Alarms
| High / Low temperature | |
| Open door | |
| Power failure | |
| Probe failure | |
Operating conditions
| Voltage | 220 V |
| Frequence | 50 / 60 Hz |
| Max ambient | 35 °C |
| Max Humidity | 65 % |
| Test condition | 20 °C |
Performance
| Temperature range | -5 to -25 °C |
| Unifromity in performance | 1,4 °C |
| Pull dowm time (from test condition to fabric setpoint) | 70 Minutes |
| Hold over time (from fabric SP to critical point) | 61 Minutes |
| Noise | 45 dB |
| Energy 24 hours | 1,4 kWh/24h |
| Energy year | 518 kWh/anno |
| Instant Power Consumption | PD 0,120 / Stable 0,052 kW |
| Heat Rejection | 120 W |
| K-Value | 0,59 W/m^2k |
Cooling components
| Refrigerant/amount | R600a / 43 Type & gram |
| Number of compressors | 1 |
| Variable speed compressor | |
| Internal air distribution (Type) | Dual air stream |
| Evaporator fan | |
| Condensor fan | |
| Number of probes | 2 |
| Defrost | |
Controller
| Controller | i-CARE |
| USB Connection | Yes |
| Data connection | MODBUS |
| Controller abilities | Logging of data & alarms, touch screen |
| Controller languages | EN, DE, FR |
| Log numbers | More than a year |
| Temperature graph in controller | |
