Name: SLN115 SIMPLE - Heating cabinet / drying oven without fan Model “Simple” which is a slightly simpler cabinet with an accuracy that is not as high as on our other models, 109 liters - LabTeamet
SKU: PE-SLN-115-SIMPLE

Description

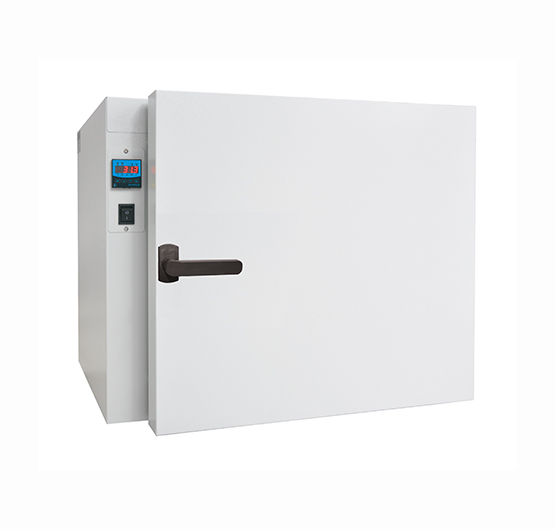

SLN115 SIMPLE – Heating cabinet / Drying oven Volume 109 liters

With the “Simple” model, you get a slightly simpler click & go type heating cabinet / drying oven where you can only set a temperature and a time, it also has a slightly lower accuracy on the temperature than the standard models. SIMPLE is the model for you with slightly simpler needs.

Standard equipment SLN 115 SIMPLE
- temperature range + 5°C above ambient temperature … +250°C
- chamber capacity 109 liters
- working capacity 109 liters
- quality control protocol at +105°C
- over temperature protection 1.0 class according to DIN 12880
- access port to enter an external sensor (Ø30 mm) on the right side of the unit
- Stainless steel wire shelf (INOX)
- external full doors
- work in time mode (max approx. 75h) or continuous operation
- available controllers: SIMPLE

Options and accessories

	Order number: */P INOX	Stainless steel wire shelf INOX
	Order number: */PP	Perforated shelf
	Order number: BRT/*/L or IQ/OQ/PQ	Calibration and IQ, OQ, PQ qualification

Technical data

TECHNICAL DATA
air convection	natural
chamber capacity [l]	109
working capacity [l]	109
controller	microprocessor with external display
display	LCD
TEMPERATURE
temperature range [°C]	5°C above ambient temperature … +250°C
temperature resolution every … [°C]	0,1
temperature protection	class 1.0 to DIN 12880
CHAMBER
door type	solid
interior	stainless steel to DIN 1.4016
housing	powder coated sheet
overall dims [mm] /1/
width A	720
height B	730
depth C	710
internal dims [mm]
width D	460
height E	540
depth F	440

shelves (standard \| max)	2 \| 7
max shelf workload [kg] /2/	10
max unit workload [kg]	60
weight [kg]	64
ELECTRICAL PARAMETERS
voltage**	230V 50-60Hz
nominal power [W]	2500
warranty	24 months

all the above technical data refer to standard units (without optional accessories)
* – fluctuation measured in centre of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max. – T average min. ) / 2
** – other power supplies on request
1 – depth doesn’t include 50 mm of power cable, the width does not include the 20 mm of rubber plug
