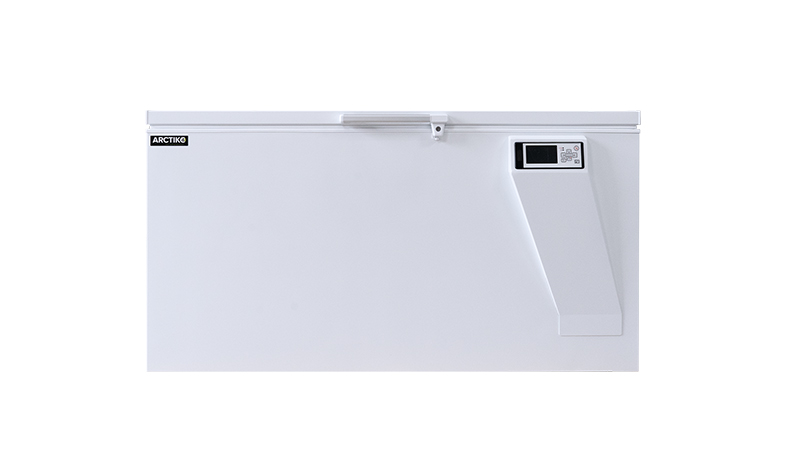

Ultrafreezer, Box, -86°C/-40°C 368 liters
Call 042-300 91 30 or email info@labteamet.com
The ULTF range shows that high performance freezing with a focus on low energy consumption is the future. The range has been updated with our advanced ARCTIKO controller which ensures that all alarm and data logging features are included as standard. The ULTF 420 ultra low temperature freezer is produced with the true and original single compressor technology that ensures the lowest noise level available.
| Item Code | DAI 0210 / 1100004 |
| Temperature Range (°C) | -40 / -86 °C |
| Max. Ambient Temperature (°C) | +20 °C |
| Capacity (L) | 368 |
| Exterior Dimensions WxDxH (mm) | 1564 X 691 X 891 |
| Interior Dimensions WxDxH (mm) | 1400 X 440 X 630 |
| Weight (KG) | 88 |
| Insulation (mm) | 80 |
| Cooling Technology | Single System / Static Cooling |
| Controller Model / Probe Type | Arctiko G 214® / Pt 1000 |
| Power Supply (V) | 230 |
| Frequency (Hz) | 50/60 |
| Power Consumption (KWHH/24H) | 8.5 |
| AMP (A) | 2.6 |
| Power (Watt) | 490 |
| Horse Power (HP) | 3/4 |
| Alarm Display As Text – Not Codes | Yes |
| Visual / Acoustic Alarm | Yes / Yes |
| Power Failure Alarm | Yes |
| Adjustable High/Low Temperature Alarm | Yes / Yes |
| Open Door Alarm | Yes |
| Probe Failure Alarm | Yes |
| Low Battery Alarm | Yes |
| Compressor Failure Alarm | No |
| Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module) | Yes |
| Electronic Data Logger | Yes |
| RS 485 Port | Yes |
| USB Port For Software Update & Data Download | Yes |
| Temperature Chart Recorder | Optional |
| Display Type | 4.3″ with Touch Buttons |
| Number Of Optional Reference Probes | 2 |
| Password Protection for Turning On/Off | Yes |
| Temperature Graph on Display | Yes |
| Automatic Defrost | No |
| Antifreeze Function | No |
| Vacuum Release Port | No |
| Access Port For External Probe Etc. (Int. Diameter mm) | Yes (12) |
| Light | No |
| Lock With Key | Yes |
| Castors (Total Pcs) / Castors With Brake (Pcs) | 4 / Optional |
| Fixed Feet (Pcs) / Levelling Feet (Pcs) | No |
| Sub Lids Or Inner Doors (Pcs) | 4 |
| Reversible Doors (Pcs) | No |
| Fixed Shelves (Pcs) / Adjustable Shelves (Pcs) | No |
| Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs) | No |
| Max Load Per Shelf (Kg) | No |
| Adjustable Drawers (Pcs) | No |
| Max. No. Of Adjustable Drawers (Pcs) | No |
| Max. Load Per Adjustable Drawer (Kg) | No |
| Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs) | No |
| Max. No. Of Blood Bags – By Max. No. Of Adj. Drawers (Pcs) | No |
| Basket (Pcs) | No |
| Max. No. Of Baskets (Pcs) | No |
| Max. Load Per Basket (Kg) | No |
| Total Capacity Of 50 Mm Boxes 9×9 Dividers (Pcs) | 282 |
| Total Capacity Of 75 Mm Boxes 9×9 Dividers (Pcs) | 180 |
| Total Capacity Of 96 Mm Boxes 9×9 Dividers (Pcs) | 129 |
| Number Of Compressors | 1 |
| Refrigerant | Nature R |
| Interior Cabinet Material | Painted Steel |
| Exterior Cabinet Material | Painted Steel |
| Colour (Exterior Cabinet) | White |
| Foam Agent | Polyurethane |
| VIP Vacuum Insulated Panels | No |
| Shipping Weight (KG) | 132 |
| Shipping Dimensions WxDxH (Cm) | 166 X 76 X 106 |
| Shipping Volume (M³) | 1.34 |
 |
Produktblad lågtemperaturfrys ULTF420 |
|
Produktkatalog Arctiko Ultra lågtempfrysar |
|
Full Produktkatalog Arctiko (Light) |
 |
Energibesparing – Räkna ut i Excel |
