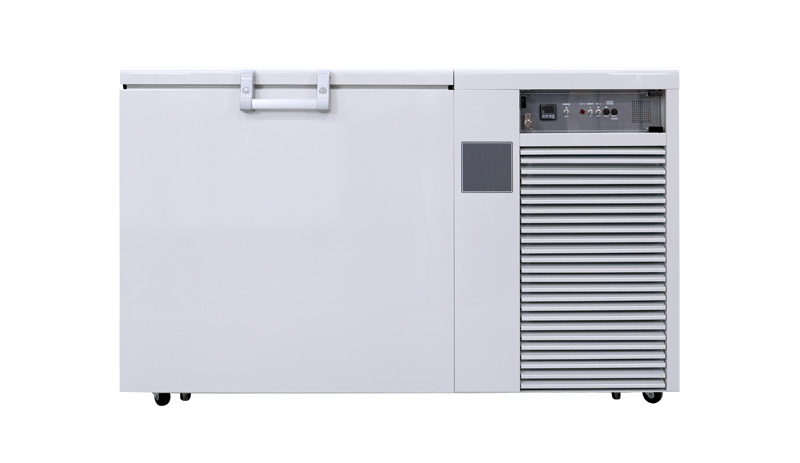

Cryogenic freezer, chest freezer, -150°/-140°C, 230 liters. With double separate cooling systems. Backup system that keeps -130°C until any problems are solved.
Call 042-300 91 30 or email info@labteamet.com
This cryogenic freezer features the highly reliable TRUE DUAL™ technology comprised by two independent cooling systems offering double security. In the unlikely event that one cooling system should fail, the second cooling system will maintain the CRYO freezer at -130°C.
The CRYO 230 offers a wide variety of research and long-term storage applications for low temperature scientific experiments, preservation of cells, DNA, bone material, bacteria, etc. With its superior cooling precision and features, the CRYO 230 is the perfect choice for storing special material, ideal for hospitals, university laboratories, military industry or sanitation stations. This cryogenic freezer can be supplied with our 9×9 or 10×10 cryoboxes, for secure handling of your samples.
Note: Chart recorder as illustrated is not included.
| Item Code | Dai 0198 / 1200002 |
| Temperature Range (°C) | -140 / -150 °C |
| Max. Ambient Temperature (°C) | +30 °C |
| Capacity (L) | 233 |
| Exterior Dimensions WxDxH (mm) | 1760 X 962,5 / 1137,5* X 1090 |
| Interior Dimensions WxDxH (mm) | 680 X 500 X 685 |
| Weight (KG) | 391 |
| Insulation (mm) | 170 |
| Cooling Technology | Dual System / Static Cooling |
| Controller Model / Probe Type | TTM-004 / PT100 |
| Power Supply (V) | 3 X 400 |
| Frequency (Hz) | 50 |
| Power Consumption (KWHH/24H) | 33.5 |
| AMP (A) | 4.7 |
| Power (Watt) | 2021 |
| Horse Power (HP) | 2 x 11/2 |
*Depth of 1135 mm includes distance on the back for correct air circulation.
| Alarm Display As Text – Not Codes | No |
| Visual / Acoustic Alarm | Yes / Yes |
| Power Failure Alarm | Yes |
| Adjustable High/Low Temperature Alarm | Yes / Yes |
| Open Door Alarm | No |
| Probe Failure Alarm | Yes |
| Low Battery Alarm | No |
| Compressor Failure Alarm | No |
| Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module) | Yes |
| Electronic Data Logger | No |
| RS 485 Port | No |
| USB Port For Software Update & Data Download | No |
| Temperature Chart Recorder | Optional |
| Display Type | LED Display |
| Number Of Optional Reference Probes | N/A |
| Password Protection for Turning On/Off | No |
| Temperature Graph on Display | No |
| Automatic Defrost | No |
| Antifreeze Function | No |
| Vacuum Release Port | Yes |
| Access Port For External Probe Etc. (Int. Diameter mm) | 20 |
| Light | No |
| Lock With Key | Yes |
| Castors (Total Pcs) / Castors With Brake (Pcs) | 4 / 0 |
| Fixed Feet (Pcs) / Levelling Feet (Pcs) | 0 / 2 |
| Sub Lids Or Inner Doors (Pcs) | 2 |
| Reversible Doors (Pcs) | No |
| Fixed Shelves (Pcs) / Adjustable Shelves (Pcs) | No |
| Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs) | No |
| Max Load Per Shelf (Kg) | No |
| Adjustable Drawers (Pcs) | No |
| Max. No. Of Adjustable Drawers (Pcs) | No |
| Max. Load Per Adjustable Drawer (Kg) | No |
| Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs) | No |
| Max. No. Of Blood Bags – By Max. No. Of Adj. Drawers (Pcs) | No |
| Basket (Pcs) | No |
| Max. No. Of Baskets (Pcs) | No |
| Max. Load Per Basket (Kg) | No |
| Total Capacity Of 50 Mm Boxes 9×9 Dividers (Pcs) | 144 |
| Total Capacity Of 75 Mm Boxes 9×9 Dividers (Pcs) | 96 |
| Total Capacity Of 96 Mm Boxes 9×9 Dividers (Pcs) | 72 |
| Number Of Compressors | 2 |
| Refrigerant | Mix |
| Interior Cabinet Material | Stainless Steel |
| Exterior Cabinet Material | Painted Steel |
| Colour (Exterior Cabinet) | Ivory |
| Foam Agent | Polyurethane |
| VIP Vacuum Insulated Panels | No |
| Shipping Weight (KG) | 563 |
| Shipping Dimensions WxDxH (Cm) | 210 X 122 X 140 |
| Shipping Volume (M³) | 03.59 |
 |
