LyoAlfa freeze dryers

Description

LyoAlfa freeze dryers

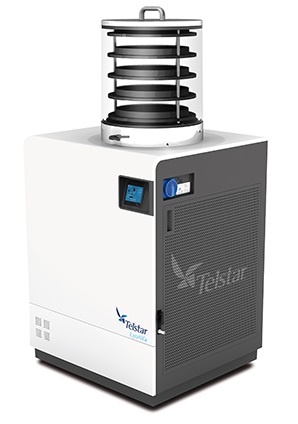

The LyoAlfa laboratory freeze dryer is especially suitable for research centers that require larger freeze drying capacity. This freeze dryer comes as a console and is mounted on wheels which makes it easy to install. The unit is very flexible, allowing simultaneous freeze-drying of bottles, vials or bulk products by connecting different manifolds and/or chambers.

The LyoAlfa laboratory freeze dryer comes in 2 configurations:

• LyoAlfa 15 -55, with a final condenser temperature of -53 ±3°C.
• LyoAlfa 15 -85, with a final condenser temperature of -83 ±3°C. This enables a higher freeze drying speed and is much more suitable for working with biological samples or products with very low eutectic or collapse points.

The unit comes with a two-stage vacuum pump located inside the console.

All the critical parts are made out of AISI 316L stainless steel.

The easy-to-use control system can display the condenser temperature and the vacuum level at all times, as well as enabling adjustment of the shelf temperature when coupled to a drying chamber.

The LyoAlfa can be supplemented with a wide range of accessories such as the heated vial closing chamber, heated bulk product chamber, 8 or 16 connection manifold, auxiliary chamber for direct connection to the manifold, etc.

The unit comes in a standard configuration with RS232 interface for connection to a PC via suitable monitoring Lyologger software.

Designed thinking on basic research

• Unit suitable for laboratories: easy to install.
• Technical reliability and excellent performance: 22 kg condenser capacity.
• Flexible to use; option for adapter manifolds; option for connection of different types of chambers.
• Robustness: solidly designed laboratory equipment. On a functional level cooling management ensures optimum performance. Easy to clean. Chamber in stainless steel.
• Flexible use: with a touch screen user interface.
• Double stage vacuum pump with gas ballast and safety valve to isolate the pump from the system, avoiding oil back streaming. An exhaust filter is included in the pump.
• Refrigerating system. Cascade system. Coil type condenser. The system includes two hermetic compressors with cascade mounting and suitable safety devices. Refrigerating fluids are CFC free.
• Control unit with digital display and friendly user touch screen.

Optimized technical features

• Easy to start-up and use; plug and play freeze-dryer; simple electrical connection to the network.
• Condenser at -53 ±3°C and -83 ±3°C. Total condenser capacity: more than 22kg.
• Heating system for the shelves included up to 70°C.
• System control by PLC + touch-screen;
• Features: condenser temperature, shelves temperature, 2 product temperatures, pressure value, process time, alarms & events, recipes, user friendly interface.
• Air cooled for compressors.
• Vacuum pump inside the cabinet.

Accessories & Options

• Chamber with thermostatic trays and vial closing
• Chamber with thermostatic trays for bulk material
• 8 connection manifold
• 16 connection manifold
• 40 connector manifold for small bottles
• Various bottles and flasks
