Name: GS Biotech® 170 Gold - CO2 incubator, 170 liters - LabTeamet
SKU: GS-170G-230

Description

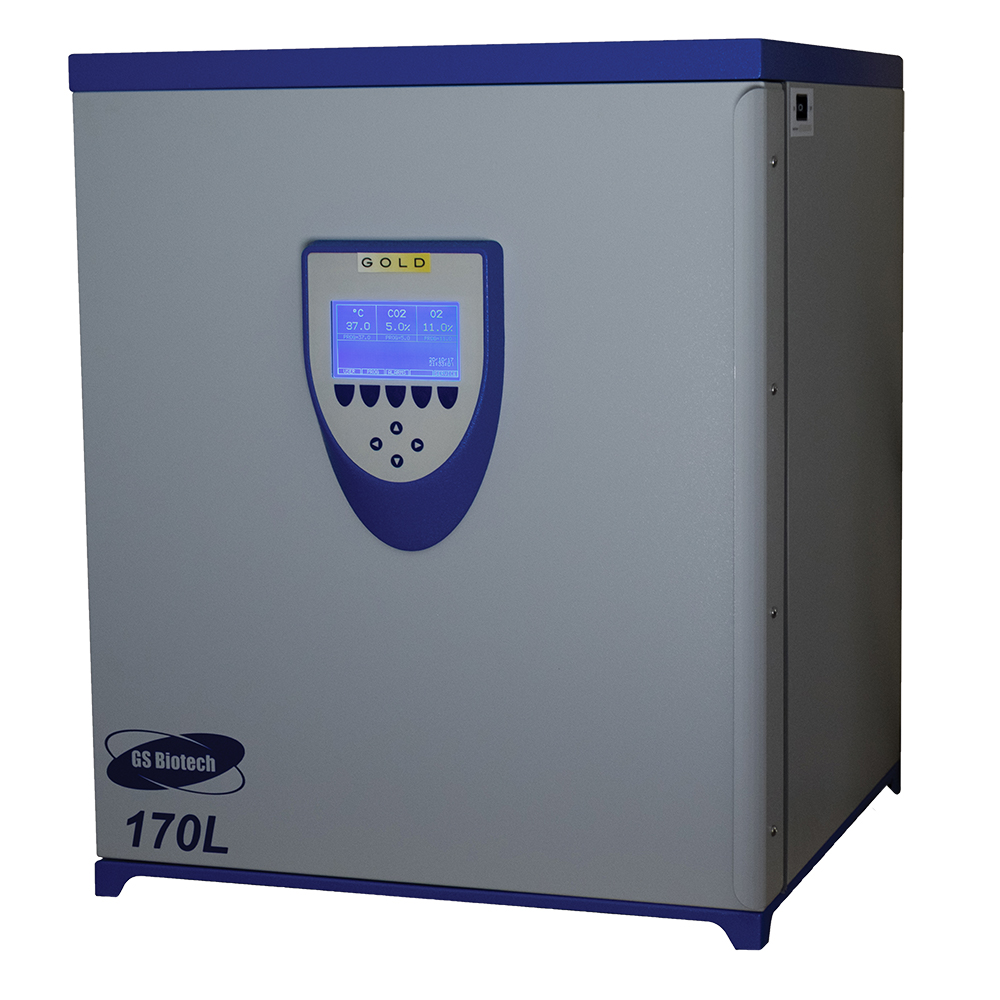

GS Biotech® 170 Gold – CO2 incubator Volume 170 liters

This incubator has a capacity of 170 liters and is designed to optimize lab work, despite a limited bench space.

Scotland based GS Biotech, designs and manufactures a range of CO2 Cell Culture incubators. The range currently consists of:- 14, 48 and 170 liter chamber capacities.
All models are descendants of the first six-sided direct heat incubators. GS Biotech has built on this series with a smart mix of older and new technology to build maximum quality, reliability, performance and choice in the series – at a reasonable price.

The series is designed around a scalable architecture and offers the following as standard:

Optimal chamber environment, profiled heating creates a gentle circulation – no fan or HEPA filter. Optimal environment for your samples. Reduced risk of contamination.
Seamless chamber walls with rounded corners for quick and easy cleaning
Removable shelves – stable and flexible
Sealed glass inner door to view the contents without affecting the samples.
Temperature range programmable between 4°C above room temperature up to 50°C
Infrared CO2 sensor with automatic self-reference function.
CO2 level programmable between 0.2 to 20%
Large easy-to-read LCD display with LED backlight.
Removable, seamless stainless steel humidity tray (vanna) as humidity reservoir.
25mm access port to insert cables etc.
HEPA filtration for all incoming gases
Large number of accessories allows you to configure each incubator for its task.
Data logging and control of temperature with reporting for QA and verification purposes.
Data port to connect to PC
3-year warranty, extendable
Low gas consumption

The security features of the control system include

Independent overtemperature switching
Calibration and programmed data have internal backup to protect against loss
Integrated alarm functions

Optional on the 170 liter model:

High temperature disinfection (4 h at 120 °C)
- This runs for 4h at 120°C before cooling down naturally and allowing normal use again.
Divided glass inner door
- 4 inner doors allow more frequent door openings with minimal impact on the environment of the chamber.
_O2 control
- Available range 1-19% or 0.1-19%
- Both control systems consist of nitrogen injection (Nitrogen) to control to the desired O2 level in the chamber.
Warning of water level in the humidity trough (vannan)
- An optional optical level sensor monitors the water level of the humidity tray. Alarms are given by an audible signal.
- It detects the water level and alarms so that there is always water in the humidity tray (alarms so that there is always water for more than 2 days of normal use.
Cooling system
- This option allows the incubator to run at temperatures 10°C below room temperature.

Our 170L option offers a large form factor which is ideal for both medium and large labs. Standard features included with the 170L option include:

Optimum chamber environment, profiled heating creates gentle circulation – no fan or HEPA filter.
Seamless chamber, with rounded interior corners makes cleaning easy.
Removable shelves are non-tip.
Sealed inner glass door allows chamber viewing.
_CO2 range programmable from 0.2 to 20 %.
Temperature range programmable from 4 °C above ambient to 50 °C.
Infrared_CO2 Sensor, with auto self-referencing function.
Large, easy to read LCD display with LED backlight.
Removable, seamless, stainless steel humidity reservoir.
25mm access port for cable pass-through etc.
HEPA filtration for all incoming gases.
Large range of options allows you to configure each incubator for each task.
Optional data capture and reporting for QA and verification purposes.
3 Year Warranty (extendable).

Teknisk specifikation – CO2 inkubator – GS Biotech 170L Gold

As well as these standard features, our 170L offering can be configured to include:

High Temperature Decontamination Cycle
This option takes the internal temperature to 120°C and maintains this temperature for 4hrs before natural cooling to allow normal function.

4-Inner Door Option
4 Inner doors allow chamber conditions to be more readily maintained when frequent entry is required to the chamber.

Oxygen Control
2 Oxygen control options are available: 1-19% & 0.1-19%
Both control systems consist of nitrogen injection to accurately control the desired below ambient Oxygen level.

Humidity Tray Warning
An optical level sensor is an option that monitors humidity tray water level, this consists of an audible alarm. The detection level provides in excess of 2 days normal operation loss so as to accommodate long weekend periods of non attendance.

All of the relevant standard features, optional extras, option codes and technical specifications for each of the available models can be seen below for a clear comparison.

Features & Options Key:
Standard Feature:	●
Available Option:	○

Features & Options	220L Gold	170L Gold	48L Gold	14L Gold
Seamless Chamber With Fully Rounded Corners	●	●	●	●
Dry Walled Chamber With No Condensate Spot	●	●	●	●
Infrared Hermetically Sealed Co2 Sensor	●	●	●	●
CO₂ Auto Reference System	●	●	●	●
Sealed Inner Glass Door	●	●	●	●
Large Lcd Display With Led Backlight	●	●	●	●
25mm Access Port With Sealing Plugs	●	●	●	●
RS232 Output Socket	●	●	●	●
On Board Datalogger	●	●	●	●
O₂ Control (1-19%)	○	○	○	○
O₂ Control (1-19%) or (0.1-19%)	○	○	○	N/A
High Temperature Decontamination	○	○	○	N/A
Humidity Tray Warning	○	○	○	N/A
4 Inner Door Option	○	○	N/A	N/A
2 Inner Door Option	N/A	N/A	○	N/A
Option Codes	220L Gold	170L Gold	48L Gold	14L Gold
230V 50/60Hz	220G-230	170G-230	048G-230	014G-230
110V 50/60Hz	220G-110	170G-110	048G-110	014G-110
O₂ Control 1-19%	220G-011	170G-011	048G-011	014G-011
O₂ Control 0.1-19%	220G-031	170G-031	048G-031	N/A
High Temperature Decontamination	220G-014	170G-014	048G-014	N/A
Humidity Tray Warning	220G-018	170G-018	048G-018	N/A
4 Inner Door Option	220G-022	170G-022	N/A	N/A
2 Inner Door Option	N/A	N/A	048G-022	N/A

Temperature Management	220L Gold	170L Gold	48L Gold	14L Gold
Range:	4°C above ambient to 50°C	4°C above ambient to 50°C	4°C above ambient to 50°C	4°C above ambient to 50°C
Control:	± 0.1°C	± 0.1°C	± 0.1°C	± 0.1°C
Stability:	± 0.1°C	± 0.1°C	± 0.1°C	± 0.1°C
Uniformity:	± 0.3°C	± 0.3°C	± 0.3°C	± 0.3°C
CO₂ Control
Range:	0.2% – 20%	0.2% – 20%	0.2% – 20%	0.2% – 20%
Control:	± 0.1%	± 0.1%	± 0.1%	± 0.1%
Stability:	± 0.1%	± 0.1%	± 0.1%	± 0.1%
Uniformity:	± 0.2%	± 0.2%	± 0.2%	± 0.2%
Recovery Rate:	> 0.7% per minute	> 0.7% per minute	> 0.7% per minute	> 1.5% per minute
Connection:	6mm tubing	6mm tubing	6mm tubing	6mm tubing
Gas Pressure:	0.35 BAR (5PSI)	0.35 BAR (5PSI)	0.35 BAR (5PSI)	0.35 BAR (5PSI)
Relative Humidity
Tray Capacity:	2.0 Litres	2.0 Litres	0.8 Litres	0.3 Litres
Humidity:	Up to 95% @ 37°C	Up to 95% @ 37°C	Up to 95% @ 37°C	Up to 95% @ 37°C
Shelves
Solid Shelves:	4 Shelves	4 Shelves	3 Shelves	2 Shelves
Dimensions:	605(W) x 470(D)mm	518(W) x 475(D)mm	378(W) x 281(D)mm	215(W) x 192(D)mm
Dimensions
Chamber:	630(W) x 490(D) x 685(H)mm	540(W) x 480(D) x 633(H)mm	400(W) x 301(D) x 400(H)mm	238(W) x 201(D) x 298(H)mm
External:	760(W) x 625(D) x 880(H)	669(W) x 623(D) x 822(H)	529(W) x 442(D) x 589(H)	336(W) x 322(D) x 481(H)mm
Crated:	885(W) x 810(D) x 1115(H)mm	794(W) x 806(D) x 1057(H)mm	654(W) x 617(D) x 824(H)mm	461(W) x 497(D) x 716(H)mm
Unit Weight:	78kg	75kg	38kg	22kg
Crated Weight:	103kg	100kg	60kg	38kg
Electrical Supply
Voltage:	100/120V 50/60Hz	100/120V 50/60Hz	100/120V 50/60Hz	100/120V 50/60Hz
Voltage:	220/240V 50/60Hz	220/240V 50/60Hz	220/240V 50/60Hz	220/240V 50/60Hz
Power:	500W (STD)	500W (STD) 1000W (HT)	500W (STD) 1000W (HT)	700W
Hold Energy:	< 0.1kWh @ 37°C	< 0.1kWh @ 37°C	< 0.1kWh @ 37°C	< 0.1kWh @ 37°C

CO2-inkubator_GS-Biotech_broschyr.pdf
