Shaking incubator (cooling available as an option)
Call 042-300 91 30 or email info@labteamet.com

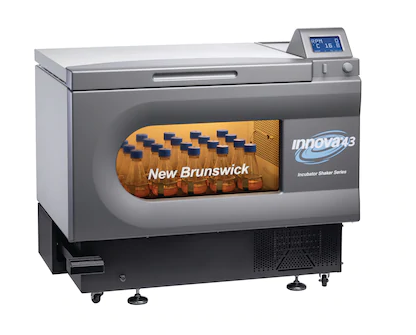

The Innova 43 and 43R (refrigerated) shakers are the perfect choice for handling large volumes of cultures with precision and ease. The top loading design allows for vertical placement of the flasks. A pedal operated lid and a window in the sidewall overlooking the samples are examples of why our customers continue to trust our designs. The cast iron triple-eccentric counterbalanced drive is specifically designed to support high-speed applications and heavy workloads – the design has stood the test of time for over 70 years and continues to enable scientists today. The simple user interface allows for easy programming of speed, temperature, time and the VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.
| Innova® 43, orbit diameter 2.5 cm (1 in) | Innova® 43R, orbit diameter 2.5 cm (1 in) | Innova® 43, orbit diameter 5.1 cm (2 in) | Innova® 43R, orbit diameter 5.1 cm (2 in) | |
|---|---|---|---|---|
| External height (with lid/door open) | 165.1 cm (65 in) | 165.1 cm (65 in) | 165.1 cm (65 in) | 165.1 cm (65 in) |
| Timer | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous | 0.01 – 99.59 h, continuous |
| Power supply | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz | 230 V, 50 Hz |
| Dimensions (W × D × H) | 115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in | 115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in | 115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in | 115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in |
| Weight w/o accessories | 202 kg / 445 lb | 216 kg / 475 lb | 202 kg / 445 lb | 216 kg / 475 lb |
| Temperature range | Ambient +5 °C to 80 °C | 20 °C below ambient to 80 °C | Ambient +5 °C to 80 °C | 20 °C below ambient to 80 °C |
| Audible and visual alarms | yes | yes | yes | yes |
| Temperature uniformity | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C | ±0.25 °C at 37 °C |
| Available program modes | › Constant speed and temperature › Programmable multi-steps › RS-232 communication port |
› Constant speed and temperature › Programmable multi-steps › RS-232 communication port |
› Constant speed and temperature › Programmable multi-steps › RS-232 communication port |
› Constant speed and temperature › Programmable multi-steps › RS-232 communication port |
| Drive mechanism | Triple-eccentric counterbalanced drive | Triple-eccentric counterbalanced drive | Triple-eccentric counterbalanced drive | Triple-eccentric counterbalanced drive |
| Benchtop (B), Under Bench (U), Floor (F) or Stackable (S) | F | F | F | F |
| Gassing manifold | yes | yes | yes | yes |
| Water/Humidity monitoring | yes | yes | yes | yes |
| Internal convenience light | yes | yes | yes | yes |
| Memory | Non volatile with automatic power failure restart | Non volatile with automatic power failure restart | Non volatile with automatic power failure restart | Non volatile with automatic power failure restart |
| Motor type | Solid state, DC brushless motor | Solid state, DC brushless motor | Solid state, DC brushless motor | Solid state, DC brushless motor |
| Photosynthetic lighting | no | yes | no | yes |
| Platform size | 76 × 46 cm (30 × 18 in) | 76 × 46 cm (30 × 18 in) | 76 × 46 cm (30 × 18 in) | 76 × 46 cm (30 × 18 in) |
| Refrigerated | – | yes | – | yes |
| Slide-out platform | no | no | no | no |
| Space-saving glide-up doors | no | no | no | no |
| Speed range | 25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit | 25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit | 25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit | 25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit |
| Multi-step programming | yes | yes | yes | yes |
| Steps per program | 15 | 15 | 15 | 15 |
| Stored programs | 4 | 4 | 4 | 4 |
| cETLus and CE marked | yes | yes | yes | yes |
| UV germicidal lamp | – | yes | – | yes |
| Agitation | ||||
| Orbit | 2.5 cm (1 in) | 2.5 cm (1 in) | 5.1 cm (2 in) | 5.1 cm (2 in) |
