Name: Eppendorf 5702RH - Centrifuge with Cooling and Heating - LabTeamet
SKU: EP-5704000016

Description

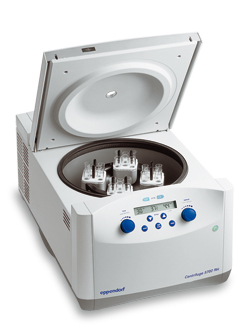

Eppendorf 5702RH – Centrifuge with Cooling and Heating

The Eppendorf 5702 family of centrifuges is designed for labs with low to medium sample throughput. They are compact in design and there are 6 different rotor options to run all types of tubes. Adapters for 8-16 tubes for the small lab, or adapters for 32-40 tubes for the slightly larger lab etc. Low noise level and ergonomic design for the best working environment.

The centrifuge is future-proof, running up to 4,400 rpm (3,000xg). Easy to use and popular centrifuge that is perfect for primary care labs, clinical labs, research labs etc.

Characteristics

Max. speed: 3,000 x g (4,400 rpm)
Very compact footprint to fit on any lab bench
Very quiet when driving to give you a good working environment
Low centrifuge for easy loading and unloading of samples
Soft start and soft brake function can be easily activated for slow acceleration and deceleration. Optimized for cell separation by gradient centrifugation.
The “At set RPM” function can easily be activated if you want the timer to start when the set speed has been reached, for reproducible spins. Otherwise, you run with the default setting where the time starts when you press start.
Possibility to lock the panel so that parameters are not changed accidentally.
Stainless steel chamber that is durable and easy to keep clean.
Electronic imbalance detector for maximum safety and durability of the centrifuge.

Special features of Centrifuge 5702 R and Centrifuge 5702 RH

Temperature setting from -9 to 40°C (or 42°C for 5702RH).
FastTemp function for fast pre-cooling.
Standby cooling keeps the 5702R at the set temperature when the lid is closed
ECO shutdown is activated after 8h if the centrifuge is not used, to reduce energy consumption and extend compressor life
Integrated condensation drainage removes condensation water and prevents corrosion
Two program button choices to store routine programs
Active heating and cooling ensures high temperature accuracy throughout the spin cycle (5702 RH only)

Ergonomics

Takes up little space, centrifuge with very compact footprint to fit on any lab bench.
Very quiet when driving, to provide you with a good working environment.
Low centrifuge, good working height for easy insertion and removal of samples.

Quality and safety

– Stainless steel chamber that is durable and easy to clean
– Imbalance detector for maximum safety
– Lockable panel to prevent accidental change of parameters
– Aerosol-tight lid available as an accessory to run hazardous samples

Temperature control

– Optimizes airflow and minimizes sample heating during run (5702)
– FastTemp function for fast pre-cooling (5702 R/RH)
– Active heating guarantees high temperature accuracy throughout the spin cycle (heating, only on 5702 RH)
– ECO shutdown is activated after 8 h if not used to reduce energy consumption and increase compressor lifetime (5702 R/RH)

Eppendorf 5702RH – Refrigerated/Heated Centrifuge

Teknisk specifikation

5702	5702 R	5702 RH
Max. RCF	3,000 × g	3,000 × g	3,000 × g
Max. speed	4,400 rpm	4,400 rpm	4,400 rpm
Speed	100 – 4,400 rpm (100 rpm steps)	100 – 4,400 rpm (100 rpm steps)	100 – 4,400 rpm (100 rpm steps)
Max. capacity	4 × 100 mL	4 × 100 mL	4 × 100 mL
Rotors available	6	6	6
Acceleration time¹	≤19 s	≤20 s	≤19 s
Deceleration time¹	≤19 s	≤28 s	≤29 s
Display	LCD	LCD	LCD
Timer	0 – 99 min, with continuous run function	0 – 99 min, with continuous run function	0 – 99 min, with continuous run function
SOFT brake function	yes	yes	yes
Noise level	< 52 dB(A) with Rotor A-4-38	<46 dB(A) with Rotor A-4-38	<46 dB(A) with Rotor A-4-38
Volume range	400 mL	400 mL	400 mL
Power supply	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz	230 V, 50 – 60 Hz
Max. power consumption	200 W	380 W	380 W
Dimensions (W × D × H)	32 × 40 × 24 cm / 12.6 × 15.6 × 9.6 in	38 × 58 × 27 cm / 15 × 22.9 × 10.6 in	38 × 58 × 27 cm / 15 × 15 × 10.6 in
Height (with open lid)	53 cm	60 cm	60 cm
Height (with open lid) (US)	20.7 in	23.4 in	23.4 in
Height (with open lid)	53 cm / 20.7 in	60 cm / 23.4 in	60 cm / 23.4 in
Weight w/o accessories	19 kg / 41.9 lb	35 kg / 77.4 lb	35 kg / 77.4 lb
Cooling	non-refrigerated	refrigerated	refrigerated/heated
Temperature control range	–	-9 °C to 40 °C	-9 °C to 42 °C
Max. capacity
Conical tubes	20 × 15 mL/ 4 × 50 mL	20 × 15 mL/ 4 × 50 mL	20 × 15 mL/ 4 × 50 mL
Blood collection tubes	36 × 13 mm/ 30 × 16 mm	36 × 13 mm/ 30 × 16 mm	36 × 13 mm/ 30 × 16 mm
